Copper C11000 Bars/Rods

Al Summan Metals, headquartered in Dubai, UAE, distinguishes itself as a leading manufacturer and supplier of high-grade Copper C11000 Bars and Rods, recognized for their exceptional purity and conductivity. By concentrating heavily on engineering excellence and reliable product quality, Al Summan Metals delivers copper solutions that meet international standards. Copper C11000, commonly known as Electrolytic Tough Pitch (ETP) Copper, offers outstanding electrical and thermal conductivity, together with superb corrosion resistance and excellent formability. Through advanced manufacturing techniques and strict quality control, Al Summan Metals serves numerous industries, such as electrical, automotive, and construction, supplying reliable and high-performance copper products.

C11000 Wrought Copper Alloy Rod & Bar Size Chart, C11000 Copper Round Rods Price in Ajman, Copper C11000 Round Bars Supplier in UAE, C11000 Copper Bus Bar Stockist in Jebel Ali, Copper C11000 Half Round Bar Supplier in Dubai, C11000 Copper Forged Bar Dealer in Abu Dhabi, 20mm Copper C11000 Round Bar Manufacturer in Abu Dhabi, C11000 Copper Round Rods Supplier in Sharjah

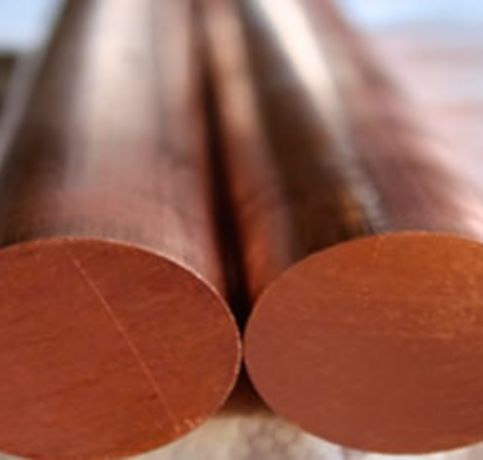

Copper C11000 Forging Rod

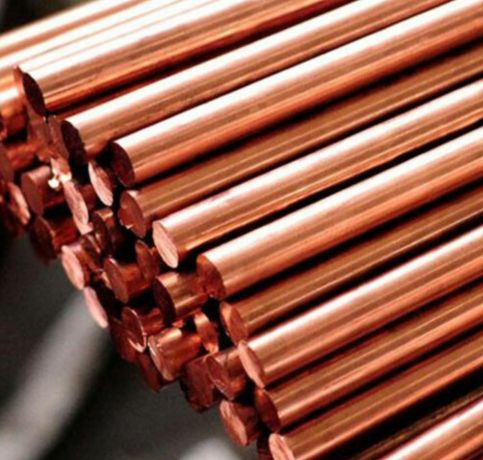

Copper C11000 Bus Bars

C11000 Copper Bright Rods

What is Copper C11000 Bars and Rods

These Copper C11000 Bars and Rods are crafted from high-purity copper (roughly 99.9%) with a small amount of oxygen (0.02–0.04%) to boost strength and workability. The alloy delivers exceptional electrical conductivity of about 101% IACS along with impressive thermal conductivity. In terms of mechanical properties, it provides a tensile strength between 200 and 250 MPa and a yield strength ranging from 50 to 100 MPa, together with good elongation and flexibility. These qualities make Copper C11000 ideal for applications demanding high conductivity, ductility, and corrosion resistance.

C11000 Copper Forging Rod Price List in Dubai, Copper C11000 Threaded Bars Supplier in Jebel Ali, Copper C11000 Copper Hexagonal Bars Exporter in Abu Dhabi, C11000 Pure Copper Rods Exporter in UAE, C11000 Copper Round Bars Manufacturer in Ajman, Copper C11000 Round Bars Distributor in UAE, C11000 Copper Half Round Bars Dealer in Abu Dhabi, Stockist of C11000 Copper Forged Bar in Jebel Ali, 20mm Copper C11000 Round Bar Supplier in UAE, C11000 Oxygen Free Copper Rectangle Rods Exporter in Sharjah

Copper C11000 Bar/Rods Specifications

Standard & Material	CDA 110 ETP, ASTM B124, ASTM B152, ASTM B187, ASTM B188, ASTM B272
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	As per Specification

Copper C11000 Bar and Rods Chemical Properties

Element	Content (%)
Cu	99.90

Copper Alloy C11000 Rods Equivalent

End Product	Specification
Bar	ASME SB133, ASTM B152, SAE J461, J463
Bar, Bus	ASTM B187
Bar, Forging	ASTM B124
Rod	ASME SB133, MILITARY MIL-C-12166, SAE J461, J463
Rod, Bus	ASTM B187

You Need Our Support, to Have Any Projects?

Copper C11000 Bars & Rods Physical Properties

Properties	Metric	Imperial
Density	8.89 g/cm3	0.322 lb/in3
Melting point	1065 – 1083°C	1949°F

Test Certificate

Why Al Summan Metals?

Packaging

Copper C11000 Bar/Rods Mechanical Properties

Properties	Metric	Imperial
Hardness, Rockwell F (hard temper)	80.0	80.0
Poisson’s ratio	0.34	0.34
Elastic modulus	115 – 117 GPa	16969 ksi

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

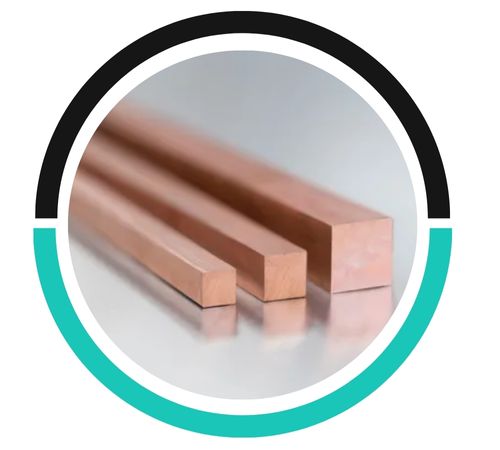

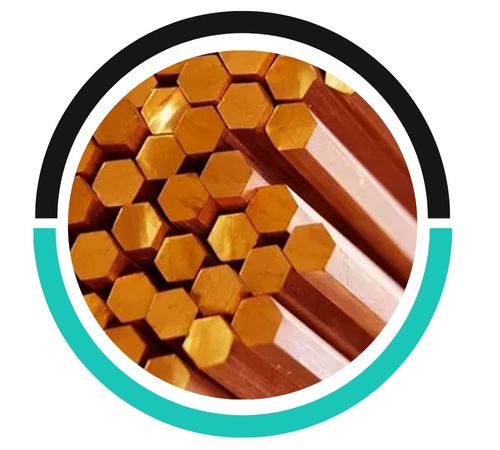

Copper C11000 Bar/Rods Types

C11000 Copper Round Bars UAE, Copper C11000 Hexagonal Bars Supplier in UAE, C11000 Copper Bus Bars Exporter in UAE, Copper C11000 Hex Bars Stockist in Dubai, C11000 Copper Alloy Rectangular Bars Supplier in UAE,Copper C11000 Square Bars Distributor in UAE, 3/16" Copper C11000 Rod Stockist Ajman, C11000 3/8" Copper Alloy Round Rod Price in Ajman, Copper Flat Bars UAE

Frequently Asked Questions (FAQ)

Can Copper C11000 Bars and Rods Be Recycled After Use?

Yes, Copper C11000 Bars and Rods can be completely recycled. Copper retains its characteristics even after being recycled, making it an environmentally friendly material option for sustainable industrial uses.

Can Copper C11000 Bars and Rods Be Welded?

Yes, Copper C11000 Bars and Rods are weldable using suitable methods like TIG or MIG welding, providing durable, dependable joints appropriate for a range of applications.

How Do I Choose The Right Copper C11000 Bars and Rods?

To select the appropriate Copper C11000 Bars and Rods, take into account factors such as conductivity, corrosion resistance, strength, application setting, and particular needs like temperature or mechanical load.

Copper C11000 Bar & Rods Uses

Copper C11000 Bars and Rods are extensively used across the electrical and electronic sectors for parts such as bus bars, transformer windings, switchgear components, and connectors, all owing to their outstanding conductivity. They’re likewise frequently seen in power generation, telecommunications, and grounding systems. Apart from electrical uses, these rods and bars serve in construction, heat exchangers, and plumbing systems where toughness and corrosion resistance matter most. Their outstanding workability, weldability, and finish make them an ideal option for both industrial and architectural purposes, guaranteeing that they operate efficiently and endure for a long time.

Our Products

Other Material

If You Are Looking To Buy High Quality

We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
