Al Summan Metals, a leading manufacturer and supplier based in Dubai, UAE, focuses on producing high-quality Carbon Steel Bars and Rods for a wide range of industrial applications. Equipped with advanced manufacturing facilities and a dedication to global standards, Al Summan Metals is recognized for supplying products that offer strength, durability, and exceptional performance. The company serves a diverse array of sectors, including construction, automotive, machinery, and engineering. Renowned for its precision, reliability, and commitment to customer satisfaction, Al Summan Metals consistently delivers premium Carbon Steel Bars and Rods that fulfill the demanding requirements of both local and international clients.
When it comes to Carbon Steel Bars and Rods, they’re composed mainly of iron and carbon, typically holding between 0.05% and 1.0% carbon, together with trace amounts of manganese, silicon, and sulfur. The carbon content is essential in shaping hardness and strength, achieving a balance between toughness and ductility. Depending on their grade, these bars can display tensile strengths ranging from 400 to 900 MPa. Owing to their outstanding machinability, weldability, and wear resistance, Carbon Steel Bars and Rods are ideal for structural and mechanical applications where reliability and versatility matter most.
| Carbon Steel Bar Standard | ASTM A36, AMS 5513, AMS 5511, AMS 5647 |
|---|---|
| Carbon Steel Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Carbon Steel Round bar size | Diameter: 3-~800mm |

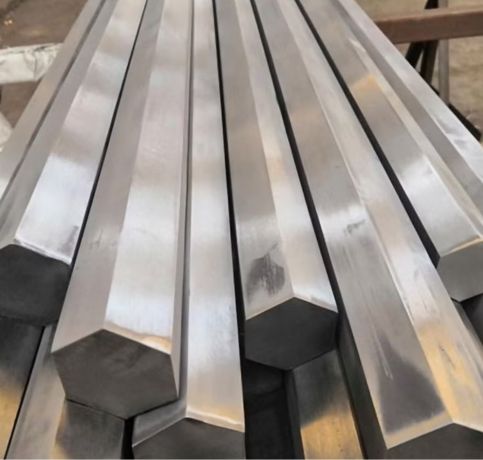

| Carbon Steel Hex Bar size | 2-100mm A/F |
| CS Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Carbon Steel Square bar size | 4 to 100mm |
| Carbon Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Carbon Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Carbon Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| ASTM A36 Type Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| CS Threaded Bar Billet Size | 1/2 to 495mm Diameter |
| Carbon Steel Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Carbon Hex Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| ASTM A36 Type Hollow Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Carbon T-Bar Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Rolled Carbon Steel Flat Bars Condition | Hardened & tempered, annealed |
| ASTM A36 Type Cold Rolled Bar Technique | Carbon Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| CS Rod Processing | Bar cutting to 650mm |
| Carbon Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Our Carbon Steel Round bar conforms to NACE MR0175/ISO 15156 | |
| Grades | Silicon | Mangenese | Carbon | Phosphorus. | Sulfur. |
|---|---|---|---|---|---|
| En-8D | 0.05/0.35 | 0.70/0.90 | 0.40/0.45 | 0.06 | 0.06 |
| En-9 | 0.50/0.80 | 0.50/0.60 | |||
| SAE 1006 | 0.10/0.30 | 0.25/0.40 | 0.08 max | 0.04 | 0.05 |
| SAE 1008 | 0.30/0.50 | 0.10 max | |||
| SAE 1030 | 0.10/0.40 | 0.60/0.90 | 0.28/0.34 | ||
| SAE 1035 | 0.32/0.38 | ||||
| SAE 1040 | 0.37/0.44 | ||||
| SAE 1010 | 0.10/0.30 | 0.30/0.60 | 0.08/0.13 | ||
| SAE 1018 | 0.60/0.90 | 0.15/0.20 | |||
| SAE 1020 | 0.30/0.60 | 0.18/0.23 | 0.09 | ||
| SAE 1045 | 0.10/0.40 | 0.60/0.90 | 0.40/0.50 | 0.05 | |
| Ck 45 | 0.15/0.35 | 0.50/0.80 | 0.42/0.50 | 0.04 | |
| Ck 55 | 0.60/0.90 | 0.52/0.60 | |||
| Ck 60 | 0.57/0.65 |
| Tensile Strength | Yield Stress, Min, MPa | % Elongation at gauge length 5.65 √Ѕo | Bend Test | ||
| Min, Mpa | |||||
| mm | <20 | 20-40 mm | >40 | min | min |
| mm | mm | ||||
| 410 | 250 | 240 | 230 | 23 | 3t* (*t is 3 times thickness) |
| EN | Normalized | ASTM | AMS | UNS |
|---|---|---|---|---|
| EN 1.0460 | A105n/SA 105n | ASTM A105 | ASME SA 105 | K03504 |
Carbon Steel Bars and Rods find application in industries including construction, automotive, machinery, and manufacturing for components such as shafts, bolts, and structural parts.
Yes, Carbon Steel Bars and Rods can undergo heat treatment to improve their hardness, strength, and wear resistance, making them well suited for demanding applications.
You’ll find Carbon Steel Bars and Rods extensively used across construction, manufacturing, and engineering industries thanks to their remarkable strength and versatility. They’re perfect for producing shafts, axles, bolts, nuts, fasteners, and structural elements in buildings and machinery. Within the automotive sector, they’re vital for engine parts and chassis components. Their excellent weldability and formability also make them well-suited for pipelines, pressure vessels, and a variety of fabrication projects. Al Summan Metals’ Carbon Steel Bars and Rods provide reliable performance, cost efficiency, and durability, making them a preferred material for a wide range of industrial and structural applications.
We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
Al Summan Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Dubai, UAE
