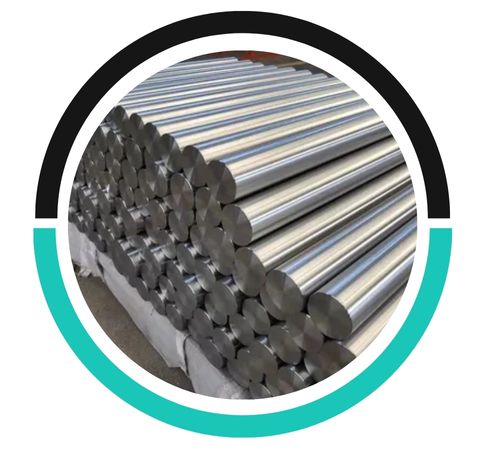

Al Summan Metals, a well-regarded manufacturer and supplier based in Dubai, UAE, focuses on premium Hastelloy X Bars and Rods. These items are engineered to provide exceptional strength, oxidation resistance, and reliability under high temperatures. Built to perform in demanding settings such as gas turbines, furnaces, and chemical plants, Al Summan Metals ensures manufacturing precision, so that their Hastelloy X Bars and Rods comply with international standards. The outcome is materials offering superb durability, weldability, and mechanical integrity, making them ideal for challenging industrial and aerospace uses.
The composition of Hastelloy X Bars and Rods is made up mainly of nickel, chromium, molybdenum, and iron, along with minor quantities of cobalt and tungsten. This distinctive mix delivers outstanding resistance to oxidation and carburization at temperatures climbing as high as 1200°C, while still preserving notable ductility and creep strength. From a mechanical standpoint, they demonstrate a tensile strength of roughly 690 MPa and a yield strength of nearly 275 MPa, keeping them stable and durable under both thermal and mechanical stress. Their carefully balanced alloy chemistry ensures both corrosion resistance and structural dependability.
| Standards : | ASTM B572, ASME SB572 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

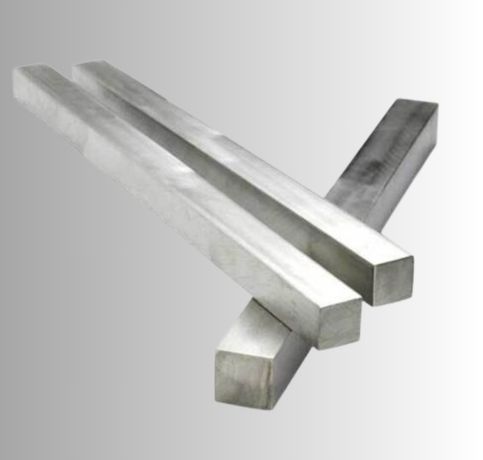

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

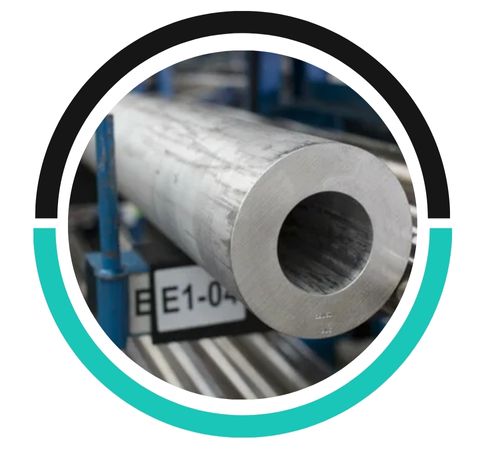

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | C0 | S | Fe | Ni | Cr | Mo | P |
| Hastelloy X | 0.05 – 0.15 | 1.00 max | 1.00 max | 0.50 – 2.50 | 0.03 max | 17.00 – 20.00 | Balance | 20.50 – 23.00 | 8.00 – 10.00 | 0.04 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.22 g/cm³ | 1355°C | 655 MPa | 240 MPa | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy X | 2.4665 | N06002 |
Hastelloy X rods generally come in diameters from 1/8" to 6", and custom sizes can be provided as well. Typical finishes include hot-rolled, cold-drawn, and polished options to match a range of applications.
Yes, Hastelloy X rods are weldable with conventional welding methods. Achieving this demands precise management of heat and welding settings to preserve their strength and resistance to high temperatures.
Hastelloy X bars are recognized for their outstanding strength at high temperatures, oxidation resistance, and superior resistance to thermal-fatigue and stress-corrosion cracking. They also provide excellent weldability and formability for demanding applications.
Hastelloy X Bars and Rods are used across numerous industries requiring materials that can withstand intense heat and corrosive environments. They work especially well for producing gas turbine engines, jet engine parts, combustion chambers, furnace components, and heat-treating equipment. Additionally, they serve an essential function in the power generation, petrochemical, and aerospace fields where resistance to oxidation and creep is essential. Thanks to their outstanding weldability, formability, and thermal stability, Hastelloy X Bars and Rods are the preferred selection for demanding industrial operations and applications dealing with high temperatures.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
