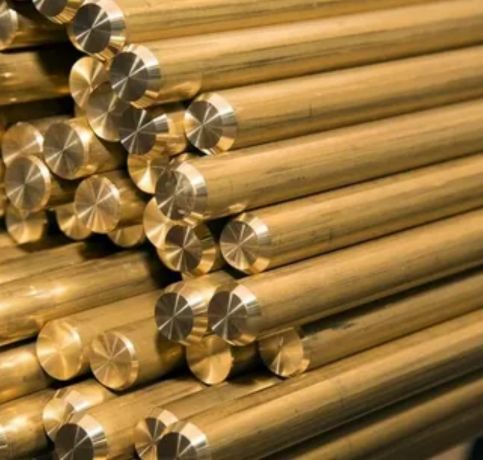

Al Summan Metals, based in Dubai, UAE, has built a strong reputation as a dependable manufacturer and supplier of premium **Aluminium Bronze Bars and Rods**. Known for their precision and durability, Al Summan Metals manufactures aluminium bronze products that feature remarkable corrosion resistance, high strength, and wear resistance, all while adhering to international standards. Aluminium Bronze, essentially an alloy of copper with aluminium, provides excellent mechanical properties, making it ideal for demanding industrial applications. Through advanced manufacturing methods and stringent quality control, Al Summan Metals ensures that its Aluminium Bronze Bars and Rods deliver reliable, long-lasting performance across a range of sectors, including marine, aerospace, automotive, and industrial.
These Aluminium Bronze Bars and Rods are made up primarily of copper with 8–12% aluminium, together with trace amounts of iron, nickel, or manganese to enhance strength and corrosion resistance. This distinctive combination yields excellent wear resistance, high tensile strength, and outstanding resistance to seawater and chemical corrosion. On the mechanical front, the alloy exhibits tensile strengths ranging from 500–700 MPa, along with high yield strength and good elongation, making it well suited for heavy-duty components, machining, and fabrication tasks.
| Standards | ASTM B150, ASME SB150, BS, IS, JIS,DIN, UNI, AMS 4640, UNS C63000/C63200/C95800/C95510, UZ19AL6, AMS 4880 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Length | 100 mm To 3000 mm Long & Above, Random, Fix & Cut Length or as per clients’ requirement |
| Size | 5 mm To 500 mm |
| Diameter | 0.1-600mm |
| Finish | Bright, Polish |
| Type | Hot-Rolled (HR) / Cold-Rolled (CR) Sheet |
| Chemical Composition Limits | ||||||||
| Weight % | Cu | Al | Fe | Mn | Ni | Si | Sn | Zn |
| AMS 4640 | Bal | 9.0-11.0 | 2.0-4.0 | 1.5 | 4.0-5.5 | 0.25 | 0.20 | 0.30 |
| Material | Diameter |
Tensile Strength ksi |
Yield Strength ksi | Elongation 4D % | Hardness HB |
| AMS 4640 Annealed Bar | <1.0″ | 110 | 68 | 10 | 201-248 |
| AMS 4640 Annealed Bar | 1.0″ – 2.0″ | 110 | 60 | 10 | 201-248 |
| AMS 4640 Annealed Bar | 2.0″ – 3.0″ | 105 | 55 | 10 | 187-241 |
| AMS 4640 Annealed Bar | 3.0″ – 5.0″ | 100 | 50 | 10 | 187-241 |
To choose the correct aluminum bronze bar, take into account factors such as strength, corrosion resistance, wear resistance, temperature conditions, and alloy composition. Make sure it is compatible with your particular application environment and mechanical requirements.

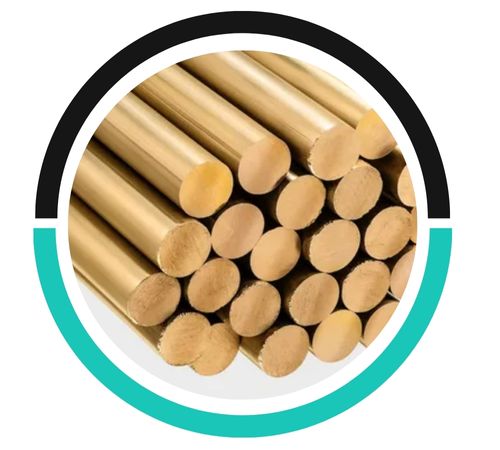

Aluminium bronze rods come in a range of sizes, generally spanning from 1/8" to 6" in diameter. Available finishes include as-forged, rough-turned, polished, and anodized for improved corrosion resistance.
Yes, aluminum bronze bars are weldable, generally through TIG or MIG welding techniques. Preheating might be necessary to avoid cracking, while post-weld heat treatment helps guarantee strength and integrity.
Aluminium Bronze Bars and Rods are widely used in industries where strength, corrosion resistance, and wear resistance are essential. They are ideal for marine hardware, propeller shafts, pump and valve components, bearings, and parts for industrial machinery. In addition, they are employed in chemical processing, oil and gas, and aerospace sectors where durability, resistance to cavitation, and long-term reliability are vital. Thanks to their remarkable mechanical strength, corrosion resistance, and versatility, Aluminium Bronze Bars and Rods are the preferred choice for demanding engineering and industrial applications.
We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
