Al Summan Metals, a highly regarded manufacturer and supplier based in Dubai, UAE, is recognized for producing premium-quality Hastelloy W Bars and Rods that are engineered to withstand severe corrosion and function reliably at elevated temperatures. These bars are purpose-built to cope with demanding chemical settings, whether they involve oxidizing or reducing media, which makes them ideal for applications in the chemical processing, petrochemical, and marine sectors. Al Summan Metals takes pride in its precision manufacturing, guaranteeing dimensional accuracy and rigorous adherence to international quality standards, so you can rely on their Hastelloy W Bars and Rods for strength, durability, and dependability in demanding industrial and engineering applications.
Hastelloy W Bars and Rods are made up of nickel, molybdenum, iron, and chromium, together with minor additions of cobalt, tungsten, and manganese. This distinctive alloy blend provides them with excellent resistance to pitting, crevice corrosion, and stress-corrosion cracking, even within demanding oxidizing and chloride-heavy environments. Mechanically, they feature a tensile strength of roughly 690 MPa and a yield strength of about 275 MPa, together with remarkable ductility and toughness. Because they stay stable at elevated temperatures, they deliver dependable performance under challenging operating conditions.
| Standards : | AMS 5755, AMS 5786, AWS A5.14 & ASME SFA 5.14 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |
| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

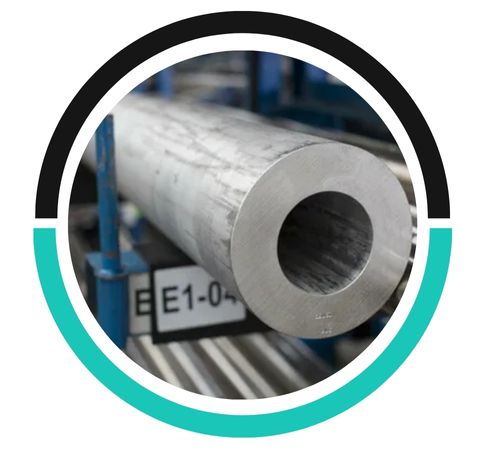

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P | Cu |
| 0.12 | 1.0 | 1.0 | 0.03 | ≤2.5 | – | 4.0-6.0 | 4.00 – 7.00 | 23-26 | 0.04 | ≤0.5 |
| Yield strength (MPa) | Tensile strength(MPa) | Impact test | Elongation (%) | Reduction in cross section on fracture (%) | As-Heat-Treated Condition | Brinell hardness (HBW) |
|---|---|---|---|---|---|---|
| 765 (≥) | 352 (≥) | 31 | 24 | 23 | Solution and Aging, Annealing, Ausaging, Q+T,etc | 214 |
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy W | – | N10004 |
Hastelloy W Bars deliver outstanding corrosion resistance, particularly in aggressive chemical settings, together with high strength and superior weldability. Thanks to their thermal stability, they are well suited for high-temperature uses.
Yes, Hastelloy W rods are weldable. They are recognized for their outstanding weldability, which makes them well-suited to high-temperature and corrosive settings.
Hastelloy W rods come in a variety of diameters, generally ranging from 1/8 inch up to several inches, and are offered in different finishes such as mill, polished, and ground. Custom dimensions and finishes can likewise be supplied to meet particular needs.
Hastelloy W Bars and Rods are suited to industries where both corrosion resistance and high-temperature strength are needed. They work exceptionally well for building reactors, heat exchangers, piping systems, valves, and chemical processing equipment. On top of that, these bars and rods serve marine engineering, pollution control systems, and aerospace components, where standing up to strong acids and aggressive media is critical. Thanks to their outstanding weldability, formability, and lasting durability, Hastelloy W Bars and Rods provide reliable performance in some of the toughest industrial settings.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
