Al Summan Metals is a highly regarded manufacturer and supplier based in Dubai, UAE. They focus on producing high-quality Titanium Bars and Rods that are designed for excellent performance across a wide range of industrial applications. The company takes pride in its precision engineering, durability, and compliance with international quality standards. Al Summan Metals’ Titanium Bars and Rods are known for their outstanding strength-to-weight ratio, notable corrosion resistance, and superb weldability. By employing advanced manufacturing techniques and strict quality control, Al Summan Metals serves a broad array of sectors, including the aerospace, marine, medical, and chemical processing industries, guaranteeing that their products reliably satisfy the most demanding operational requirements.
Titanium Bars and Rods consist chiefly of titanium, blended with modest quantities of iron, oxygen, nitrogen, carbon, and hydrogen. This distinctive makeup achieves an ideal equilibrium between mechanical strength and corrosion resistance. In most cases, they feature a tensile strength between 485 and 550 MPa and a yield strength close to 345 MPa, together with a 20% elongation. Both lightweight and remarkably tough, these bars and rods deliver outstanding formability, weldability, and resistance to stress cracking, oxidation, and aggressive chemical conditions.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

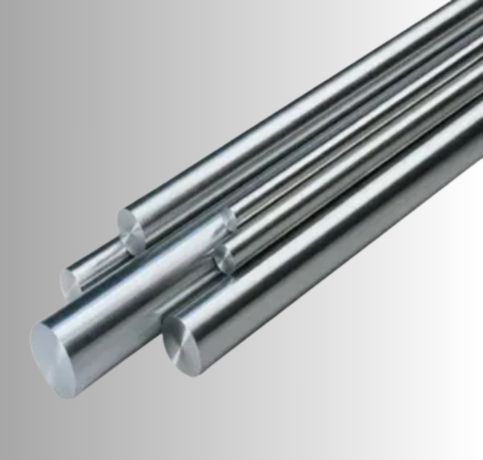

| Round bar size : | Diameter: 3-~800mm |

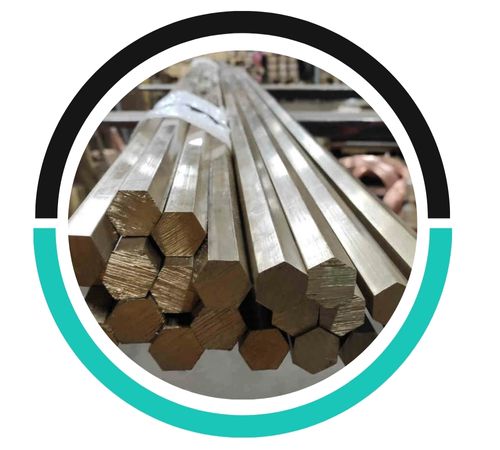

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

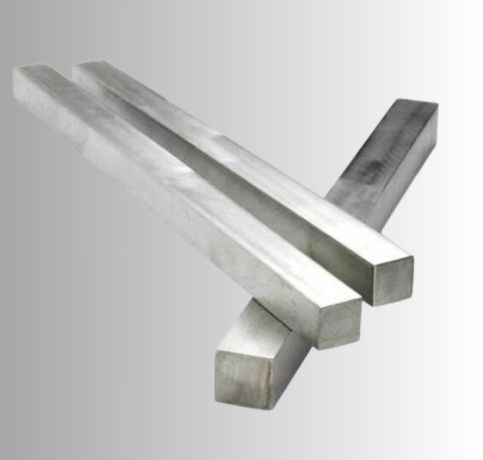

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

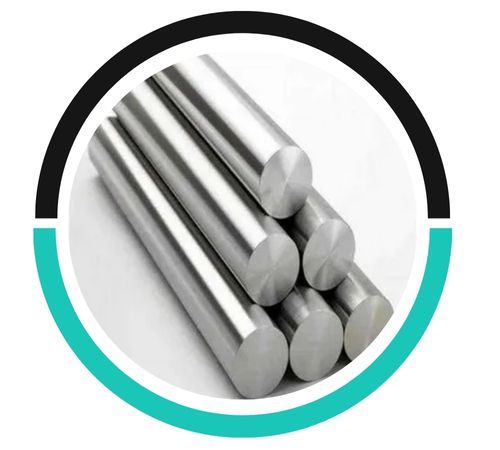

| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
Titanium bars and rods, when pure, do not respond to magnets. That said, some titanium alloys can display minor magnetic behavior, based on whether other metals such as iron or nickel are present.
Yes, titanium bars and rods can be tailored in size, shape, length, and surface finish. Custom options are offered for particular applications or design needs. For more information, mail us on sales@alsummanmetals.ae
Titanium bars and rods can indeed be recycled. With its high durability, titanium goes through a recycling process that melts down and reprocesses scrap titanium into new products, retaining its properties while cutting down on waste.
Titanium Bars and Rods find broad application across industries demanding high strength, minimal weight, and resistance to corrosion. They commonly appear in aerospace structures, marine equipment, chemical processing systems, heat exchangers, and power generation plants. Within the medical sector, they are indispensable for surgical instruments, orthopedic implants, and dental uses because of their biocompatibility. Beyond that, they serve a vital function in offshore engineering, automotive components, and desalination plants, where lasting durability and reliable performance under harsh conditions are essential.
Our products are supplied with mill test certificates as well as third-party test certificates, guaranteeing top-tier standards of quality and compliance.
