Tool and Die Steel A2 Bars

Al Summan Metals, a leading manufacturer and supplier based in Dubai, UAE, is renowned for its high-quality Tool and Die Steel A2 Bars, engineered for exceptional toughness and dimensional stability. These bars are air-hardening tool steels that achieve an ideal balance between wear resistance and machinability, making them well-suited for a wide range of industrial applications. Al Summan Metals prides itself on guaranteeing that every A2 Bar meets rigorous international quality standards through careful engineering and advanced production techniques. The Tool and Die Steel A2 Bars from Al Summan Metals deliver outstanding performance, durability, and reliability, whether used in cold or moderate heat-working environments.

AISI A2 Tool Steel Round Bars Dealer in Ajman, Tool Steel T30102 Bar Manufacturer in Dubai, Chrome Moly Steel A2 Round Bars Supplier in Abu Dhabi, A2 Tool and Alloy Steel Bars Price List in UAE, Die Steel A2 Bars Supplier in Sharjah, A2 Alloy Steel Round Bars Price Per Meter, ASTM A681 A2 Tool Steel Round Bars Size Chart, Tool and Die Steel T30102 Threaded Bar Price List in UAE, Alloy Steel A2 Rods Stockist in Jebel Ali, Die Steel Round Bar A2 Supplier in Sharjah

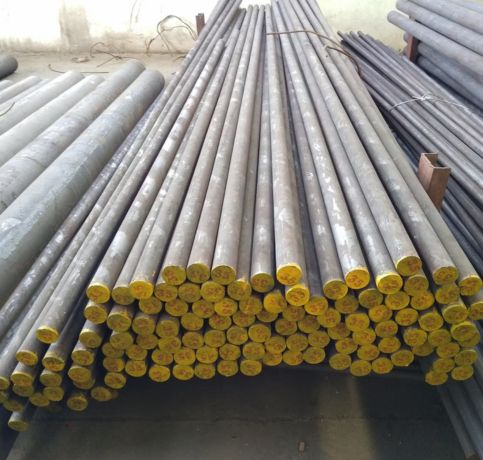

Die Steel A2 Rods

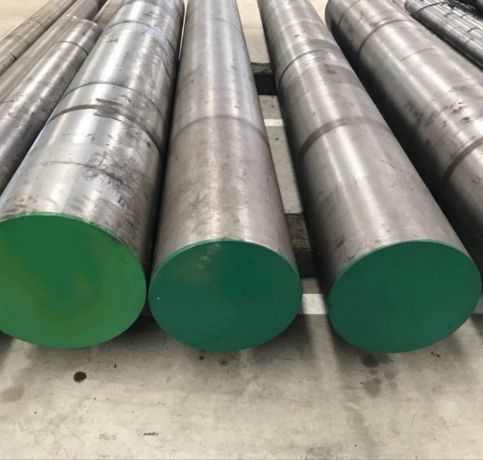

A2 Tool Steel Round Bar

A2 Tool and Die Steel Bar

What is Tool and Die Steel A2 Bars?

The A2 Tool and Die Steel Bars are made up of carbon, chromium, molybdenum, and manganese, which combine to deliver exceptional toughness and resistance to wear. Once heat treated, the steel keeps solid dimensional stability and features high compressive strength. From a mechanical standpoint, A2 Bars provide a balanced combination of hardness and toughness, along with notable resistance to chipping and cracking. Their air-hardening property minimizes distortion throughout the hardening process, guaranteeing accurate and steady performance in tooling applications.

Tool Steel 1.2363 Round Bars Exporter in UAE, Alloy Steel A2 Round Bars Stockist in Dubai, A2 Die Steel Alloy Steel Bars Supplier in Jebel Ali, X100CrMoV5 Cold Drawn Bar Distributor in Dubai, A2 Hot Rolled Alloy Steel Bar Stockist UAE, High Quality A2 Cold Work Die Steel Round Bar Price in Ajman, High-carbon Steel A2 Round Bars And Rods Price List, Tool Steel UNS T30102 Rods Supplier in UAE, Quenched & Tempered A2 Alloy Steel Bar Manufacturer in Ajman

Tool and Die Steel A2 Bars Specifications

Standard : ASTM A681, ASME SA681
Dimensions : EN, DIN, JIS, ASTM, BS, ASME, AISI
Form : Round
Diameter : 10 mm ~ 900 mm
Size : 0.08 mm to 25.00 mm
Diameter Range : 0.040 mm – 12 mm (0.0016” – 0.4724”)
Application : Lathe Tools, Milling Cutters, Cutting Blades, Boring Tools, Twist Drills, Milling Knives, Reamers, Taps, Metalcutting Saws, Screw Cutting Tools, File Cutter’s Chisels, Drills, Hobs, Drill Bits, Thread Cutting Tools etc

Chemical Compositions of Tool and Die Steel A2 Bars

ASTM A681	C		Mn		P	S	Si		Cr		V		Mo
A2/T30102	0.95	1.05	0.40	1.00	0.03	0.03	0.10	0.50	4.75	5.50	0.15	0.50	0.90	1.40
DIN ISO 4957	C		Mn		P	S	Si		Cr		V		Mo
1.2363/X100CrMoV5	0.95	1.05	0.40	0.80	0.03	0.03	0.10	0.40	4.80	5.50	0.15	0.35	0.90	1.20
JIS G4404	C		Mn		P	S	Si		Cr		V		Mo
SKD12	0.95	1.05	0.40	0.80	0.03	0.03	0.10	0.40	4.80	5.50	0.15	0.35	0.90	1.20
BS 4659	C		Mn		P	S	Si		Cr		V		Mo
BA2	0.95	1.05	0.30	0.70	0.035	0.035	. . .	0.40	4.75	5.25	0.15	0.40	0.90	1.10

Mechanical Properties of Tool and Die Steel A2 Bars

Properties	Metric	Imperial
Hardness, Rockwell C (as air-hardened (63-65 HRC average), 60-62 HRC at 205°C, 59-61 HRC at 260°C, 58-60 HRC at 315°C, 57-59 HRC at 370°C and 425°C and 480°C, 56-58 HRC at 540°C, 50-52 HRC at 595°C, 42-44 HRC at 650°C)	64	64
Bulk modulus (typical for steels)	140 GPa	20300 ksi
Machinability (based on carbon tool steel)	65%	65%
Shear modulus	78.0 GPa	11300 ksi
Poisson’s ratio	0.27-0.30	0.27-0.30
Elastic modulus	190-210 GPa	27557-30457 ksi

You Need Our Support, to Have Any Projects?

Test Certificate

Why Al Summan Metals?

Packaging

Equivalent Grades of Tool and Die Steel A2 Bars

Country	USA	German	Japan	British
Standard	ASTM A681	DIN EN ISO 4957	JIS G4404	BS 4659
Grades	A2/T30102	1.2363/X100CrMoV5	SKD12	BA2

Thermal Properties of Tool and Die Steel A2 Bars

Properties		Conditions
Properties		T (°C)	Treatment
Thermal expansion	10.7 x 10^-6/ºC	20-100	–

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Tool and Die Steel A2 Bars Types

ASME SA681 Tool Steel A2 Hot Forged Bars Exporter in Abu Dhabi, Stockist of A2 Die Steel Bars in Jebel Ali, UNS T30102 Round Bars Supplier in UAE, JIS SKD12 Round Bar Price List in Dubai,High-chromium A2 Bars Exporter in Abu Dhabi , Tool and Die Steel A2 Bars Exporter in UAE, Alloy Steel A2 Rods Supplier in Jebel Ali, CrMo A2 Cold Drawn Round Bars Manufacturer in Abu Dhabi , A2 Tool Steel Alloy Steel Round Bars Distributor in UAE, Carbon Steel A2 Hot Rolled Round Bars Dealer in Ajman

Frequently Asked Questions (FAQ)

What Is The Standard Annealing Temperature For Tool and Die Steel A2 Bars?

The typical annealing temperature for A2 tool and die steel bars generally ranges from 800°C to 850°C (1472°F to 1562°F), after which the material is cooled slowly to ease internal stresses and soften it.

How Do Tool and Die Steel A2 Bars Resist Corrosion?

A2 tool and die steel bars withstand corrosion thanks to their elevated chromium content, which creates a protective oxide layer that boosts resistance to rust and wear, particularly in cold-work applications.

How Should Tool and Die Steel A2 Bars Be Stored?

A2 tool and die steel bars ought to be kept in a cool, dry space, protected from moisture and corrosive substances. Provide adequate ventilation and keep them off direct contact with the ground to avoid rust.

Tool and Die Steel A2 Bars Uses

These A2 Bars find widespread use in manufacturing dies, punches, forming tools, shear blades, and gauges. Thanks to their excellent wear resistance and dimensional stability, they are ideally suited for precision cold-working operations. Frequently seen across the automotive, aerospace, and general engineering industries, these bars play a vital role in applications requiring durability and dependable performance. What’s more, Tool and Die Steel A2 Bars are preferred for tools subjected to moderate heat and impact, ensuring lasting efficiency and reliability in demanding production settings.

Our Products

Other Material

If You Are Looking To Buy High Quality

We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
