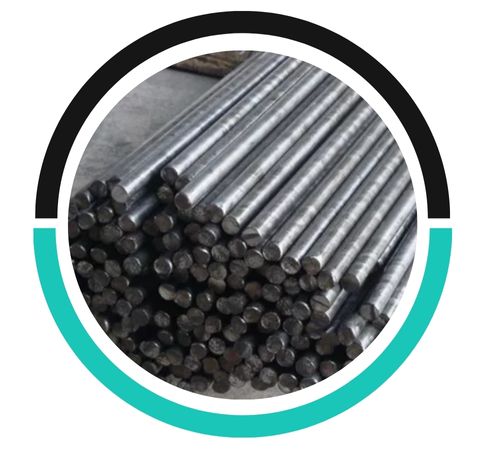

Al Summan Metals, a highly respected manufacturer and supplier located in Dubai, UAE, has built a solid reputation for providing top-quality 1035 Round Bars that meet a broad spectrum of industrial needs. Through their advanced production technology and rigorous quality control measures, Al Summan Metals guarantees that each 1035 Round Bar delivers exceptional strength, precision, and durability. Their unwavering commitment to quality has established them as a reliable supplier of carbon steel products throughout the engineering, manufacturing, and construction industries. The 1035 Round Bars offered by Al Summan Metals are particularly prized for their well-balanced mechanical properties, effortless machinability, and reliable performance in uses that demand moderate strength and wear resistance.
These 1035 Round Bars are made from medium carbon steel, with a carbon content of roughly 0.32–0.38%, manganese of 0.60–0.90%, phosphorus up to 0.04%, and sulfur of 0.05%. This well-proportioned makeup provides solid hardness, tensile strength, and wear resistance, while still allowing acceptable ductility and machinability. In terms of mechanical properties, 1035 steel typically offers a tensile strength of about 620 MPa and a yield strength of around 350 MPa. It can additionally undergo heat treatment to boost its hardness and strength, which makes it a great option for parts that call for both durability and moderate formability.
|
Element |
Content |
|---|---|
|
Carbon, C |
0.310 – 0.380 % |
|
Iron, Fe |
98.63 – 99.09 % |
|
Manganese, Mn |
0.60 – 0.90 % |
|
Phosphorous, P |
0.040 % |
|
Sulfur, S |
0.050 % |
|
Properties |
Metric |
Imperial |
|---|---|---|
|
Tensile strength, ultimate |
585 MPa |
84800 psi |
|
Tensile strength, yield |
370 MPa |
53700 psi |
|
Modulus of elasticity |
190-210 GPa |
29700-30458 ksi |
|
Bulk modulus (typical for steel) |
140 GPa |
20300 ksi |
|
Shear modulus (typical for steel) |
80 GPa |
11600 ksi |
|
Poissons ratio |
0.27-0.30 |
0.27-0.30 |
|
Elongation at break (in 50 mm) |
30% |
30% |
|
Reduction of area |
53% |
53% |
|
Hardness, Brinell |
183 |
183 |
|
Hardness, Knoop (converted from Brinell hardness) |
204 |
204 |
|
Hardness, Rockwell B (converted from Brinell hardness) |
89 |
89 |
|
Hardness, Vickers (converted from Brinell hardness) |
192 |
192 |
|
Machinability (based on AISI 1212 steel. as 100 machinability) |
65 |
65 |
| EN Name | EN Number | DIN | JIS | UNI | BS |
|---|---|---|---|---|---|
| C35 | 1.0501 | C35, CM35 | S35C | C35 | 970 070M36 |
1035 Round Bar is not recommended for cryogenic uses, since it may become brittle at extremely low temperatures.
When choosing the right 1035 Round Bar, consider aspects like the required strength, machinability, and the needs of your specific application, ensuring it aligns with your project’s requirements.
Yes, 1035 Round Bar is recyclable and can be reused in a variety of applications.
You’ll find 1035 Round Bars being extensively utilized across sectors such as automotive, engineering, and machinery manufacturing. They’re well suited for making components like shafts, bolts, axles, crankshafts, couplings, and pins, where a balance of strength and machinability matters greatly. Beyond that, these bars serve agricultural equipment, fasteners, and a range of mechanical parts that demand toughness and wear resistance. Thanks to their excellent response to heat treatment, 1035 Round Bars are often the go-to choice for forging and machining tasks. Their adaptability, affordability, and reliable performance make them a favored material for medium-strength engineering and structural applications.
We provide items delivered with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
