Al Summan Metals, based in Dubai, UAE, has established a strong reputation as a dependable manufacturer and supplier of high-quality metal products, especially Aluminium 1100 Bars and Rods. Recognized for their precision engineering and advanced manufacturing techniques, together with strict quality control, this company reliably provides aluminium solutions that meet international standards. Al Summan Metals ensures that its Aluminium 1100 Bars and Rods offer remarkable corrosion resistance, formability, and lightweight properties, making them ideal for a wide range of industrial and structural applications. Serving industries such as construction, chemical processing, and electrical sectors, Al Summan Metals blends expertise with reliability, establishing itself as a preferred partner for clients seeking durable, high-performance aluminium components.
The Aluminium 1100 Bars and Rods consist of over 99% pure aluminium, containing only trace amounts of iron, silicon, and other elements, which enhances their corrosion resistance, formability, and conductivity. These products exhibit mechanical properties such as a tensile strength ranging from roughly 70 to 125 MPa, yield strength of around 40 to 70 MPa, and elongation between 35 to 45%, depending on the temper. They also deliver excellent machinability, fatigue resistance, and dimensional stability, making them well suited for applications that require lightweight, durable, and reliable aluminium components.
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4121 2014 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

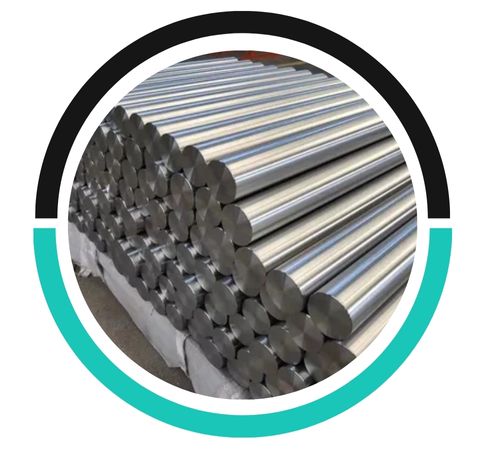

| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |

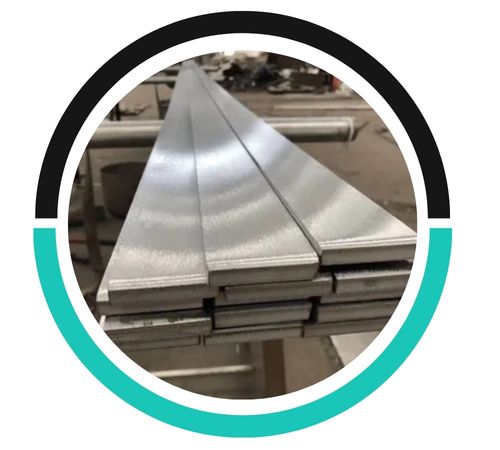

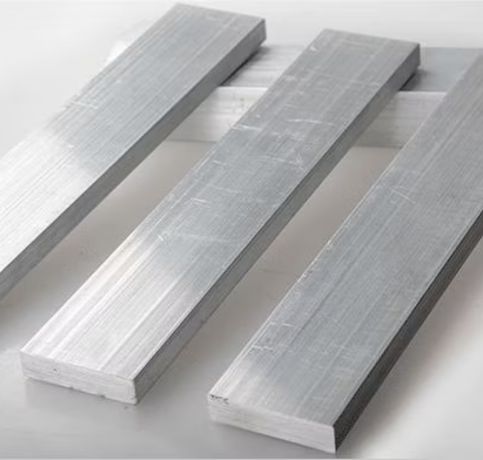

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

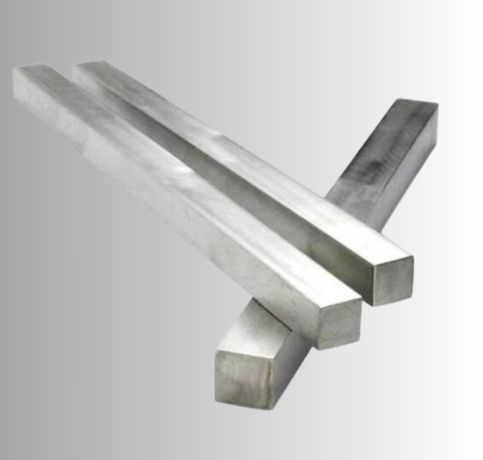

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Stainless Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | Fe | Si | Mg | Mn | Cu | Zn | Ti | Al |
| Aluminium 1100 | 0.35 – 0.50 | 0.25 – 0.35 | 0.01 – 0.03 | 0.01 – 0.05 | 0.05 – 0.20 | 0.01 – 0.05 | 0.020 – 0.030 | 99.00% |
| Grade | Density | Tensile Strength | Melting point |
| Aluminium 1100 | 2.71 g/cm3 | 13 – 24 ksi | 1195 °F |
| STANDARD | ISO. | UNS |
| Aluminium 1100 | Al99.0Cu | A91100 |
To maintain Aluminium 1100 Bar, clean it regularly with mild detergent and water, steer clear of harsh chemicals, keep it stored in a dry place, and guard against scratches or corrosion by applying suitable coatings.
Aluminium 1100 rods are usually sized according to diameter, spanning from small sizes such as 1/8 inch up to larger diameters reaching 12 inches. Lengths are commonly offered in 12-foot sections or custom sizes.
To maintain Stainless Aluminium 1100 Bar, clean it regularly using a mild detergent and water, steer clear of harsh chemicals, check for signs of corrosion, and keep it stored in a dry, cool environment to avoid damage.
Aluminium 1100 Bars and Rods are widely used in chemical equipment, storage tanks, roofing, siding, and architectural projects thanks to their exceptional corrosion resistance and formability. They are also employed in automotive panels, electrical components, heat exchangers, and decorative applications. The alloy’s distinctive combination of lightweight, high conductivity, and durability makes it a preferred option for industries seeking reliable, long-lasting aluminium components that can operate efficiently across a range of industrial, structural, and environmental conditions.
We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
