Al Summan Metals, based in Dubai, UAE, has established a strong reputation as a manufacturer and supplier of high-quality metal products, especially Aluminium 5754 Bars and Rods. The company distinguishes itself through its advanced production methods, strict quality control, and commitment to delivering materials that meet international standards. The Aluminium 5754 Bars and Rods offered by Al Summan Metals are recognized for their remarkable corrosion resistance, strength, and formability, which makes them well-suited for a wide range of industrial applications. Serving industries such as marine, automotive, construction, and chemical processing, Al Summan Metals ensures dependable performance, durability, and precision across every product, reinforcing its position as a trusted supplier of aluminium solutions.
These Aluminium 5754 Bars and Rods are made mainly from an aluminium alloy combined with magnesium, usually containing 2.6–3.6% magnesium, which enhances their strength, corrosion resistance, and weldability. They exhibit mechanical properties such as tensile strength ranging from 190–300 MPa, yield strength between 80–260 MPa, and elongation of 12–25%, depending on the temper. Offering excellent resistance to seawater and industrial chemicals, together with good cold working characteristics, these bars and rods are ideal for structural and high-performance applications that require durability and stability.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

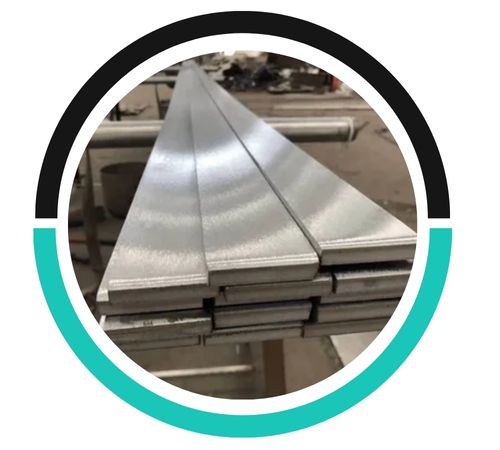

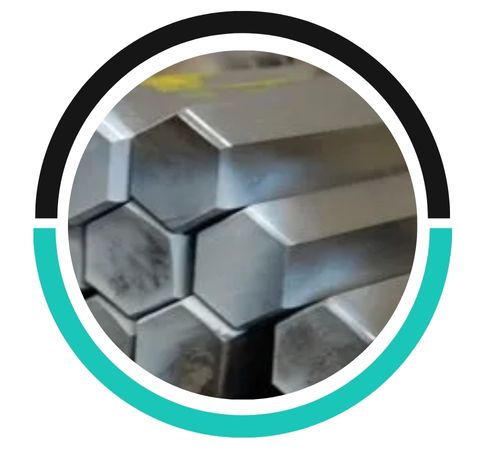

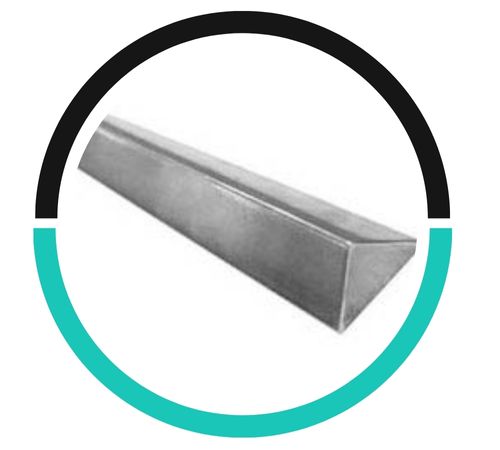

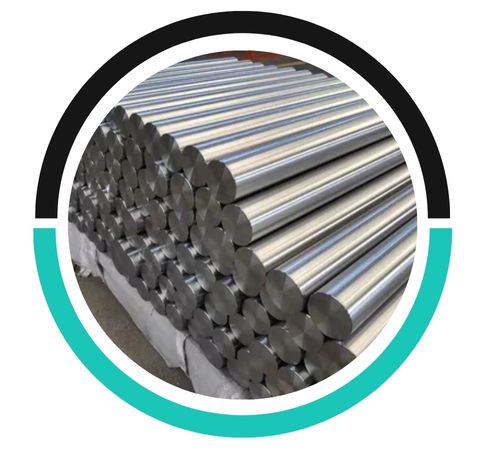

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Mg | Mn | Si | Cu | Fe | Cr | Zn | Ti | Cu | Other (Each) | Others (Total) | Al |
| 2.60 – 3.60 | 0.0 – 0.50 | 0.0 – 0.40 | 0.0 – 0.40 | 0.0 – 0.30 | 0.0 – 0.20 | 0.0 – 0.15 | 0.0 – 0.10 | 0.0 – 0.05 | 0.0 – 0.05 | 0.0 – 0.15 | Balance |
| Proof Stress | Tensile Strength | Elongation at 50 mm | Hardness Brinell |
| 80 Min MPa | 190 – 260MPa | 12 Min % | 52 HB |
| UNS | EN | DIN | ISO | USA | WNR |
| A95754 | EN AW-5754 | AlMg3 | AlMg3 | AA5754 | 3.3535 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 5754 bars and rods are well suited for structural applications thanks to their outstanding strength, corrosion resistance, and formability, which makes them ideal for use in marine, automotive, and architectural structures.
Yes, Aluminium 5754 bars are weldable using a range of techniques, including MIG and TIG welding. That said, correct welding procedures and equipment are necessary to preserve its strength and integrity.
Aluminium 5754 bars are generally sized according to their diameter and length. The diameter may span from a few millimeters up to several inches, whereas the length is commonly offered in standard lengths, usually up to 6 meters. Custom sizes can likewise be ordered to meet specific requirements. The bars come in a range of shapes, such as round, square, and hexagonal, to accommodate different applications.
Aluminium 5754 Bars and Rods are widely used in marine structures, shipbuilding, automotive panels, welded assemblies, pressure vessels, and storage tanks, owing to their exceptional corrosion resistance and strength. They are also used in architectural structures, railway components, and chemical handling equipment, where lightweight materials with a long service life are crucial. Their impressive weldability and formability make them well-suited for projects that call for shaping and fabrication without compromising durability. To sum up, Aluminium 5754 Bars and Rods are the preferred choice for environments exposed to moisture, chemicals, and mechanical stress, delivering reliable and long-lasting performance.
We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
