Al Summan Metals, a well-respected manufacturer and supplier based in Dubai, UAE, is dedicated to producing high-quality Carbon Steel EN-9 Bars engineered for strength, durability, and precision. With their advanced manufacturing methods and rigorous quality control practices, Al Summan Metals ensures that every EN-9 Bar not only satisfies international standards but also delivers dependable performance across a wide range of industrial uses. These bars are renowned for their remarkable tensile strength, hardness, and wear resistance, which makes them ideal for the automotive, machinery, and engineering industries. Al Summan Metals provides precision-engineered steel solutions that combine toughness, machinability, and enduring performance, positioning them as the preferred option for challenging industrial and mechanical applications.
Carbon Steel EN-9 Bars are medium-carbon steels that generally hold about 0.36–0.44% carbon, 0.60–0.90% manganese, together with small quantities of phosphorus and sulfur. This distinctive composition delivers a balanced combination of strength, toughness, and resistance to wear. In terms of mechanical properties, EN-9 steel offers a tensile strength of roughly 600–700 MPa and a yield strength between 355–450 MPa. It is recognized for its good machinability, moderate ductility, and excellent hardness, and it can undergo heat treatment to enhance its mechanical performance in demanding engineering uses.
| Grade | 070M55 / EN-9 |
|---|---|
| Specification | BS 970 1991 |
| Round Bar Size | Diameter: 3-~800mm |
| Square Bar size | 4 to 100mm |
| Flat Bar Size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

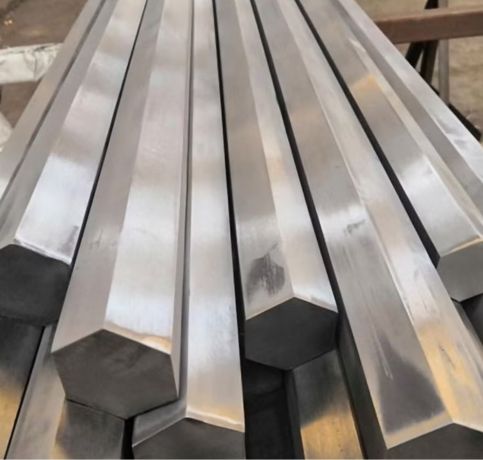

| Hex Bar Size | 2-100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle Bar Size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground,smooth turned, Rough Turned, Bright, peeled, hot rolled, hot rolled annealed, slit rolled edge, Polish, Grinding, Centreless Ground & Black |
| Tolerance | K9, K10, K11, K12, H8, H9, H10, H11, H12, H13, or as per clients’ requirements |
| Surface | Polished, Bright, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Hairline |
| Condition | Hardened & Tempered, Annealed |
| Technique | en9 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rods |
| Processing | Bar cutting to 650mm |
| Form | en9 Welding Rod, Round, Round Rod, Rings, Hollow, Rod, T-Bar, Channel Bar, Flat Bar, Square, Blocks, Precision Ground Bar, Triangle, Rectangle, Hex (A/F), Threaded, Ingot, I/H Bar, Half Round Bar, Profiles, Billet, Forging etc. |
| EN9 / 070M55 Bars and Rods Conforms To NACE MR0175/ISO 15156 | |
| Grade | Cr | C | Ni | Si | S | Mn | P | Mo |
| EN – 9 | – | .50 – .60 | – | .05 – .35 | .040 MAX | .50 – .80 | .040 MAX | – |
| Heat Treatment | Condition Tons/SQ.inch | Tensile Stress RE MPA | RP0.2 MPA | A min on 5.65so | Impac | Hardness HB | Limited Ruling Section mm | |
| IZODFT.L.b | KCV Joules | |||||||
| Normalise | 45 | 700 | – | 12 | – | – | 201-255 | 63 |
| 39 | 600 | – | 13 | – | – | 170/223 | 250 | |
| R | 45/55 | 700/850 | 385 | 14 | – | – | 201/277 | 100 |
| S | 50/60 | 775/925 | 450 | 14 | – | – | 223/277 | 63 |
| T | 55/65 | 850/1000 | 555 | 12 | – | – | 248/302 | 19 |
| Standard | CS EN-9 |
| UNS | – |
| WERKSTOFF NR. | CK55 |
| BS | 070M55 |
| IS | C55 |
| JIS | – |
| EN | EN9 |
| SAE/AISI | 1055 |
Carbon Steel EN-9 is widely applied in the production of bolts, nuts, fasteners, and structural parts for heavy-duty uses such as the automotive and construction sectors.
EN-9 provides outstanding tensile strength, resistance to wear, and hardenability, which makes it well-suited for parts exposed to mechanical stresses and demanding, heavy-duty conditions.
Yes, Carbon Steel EN-9 can undergo heat treatment to improve its hardness and strength, making it adaptable for a range of engineering applications.
These Carbon Steel EN-9 Bars are a mainstay in the automotive, mechanical, and general engineering sectors, owing to their impressive strength, hardness, and versatility. You’ll encounter them across a range of applications, such as shafts, bolts, studs, axles, gears, crankshafts, and connecting rods, all of which call for durability and wear resistance. They’re also employed in construction equipment, agricultural machinery, and forging operations where toughness and dimensional stability are crucial. With their outstanding machinability and responsiveness to heat treatment, EN-9 Bars are ideal for producing precision-engineered components capable of enduring high-stress and heavy-duty operational conditions.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
