Al Summan Metals, headquartered in Dubai, UAE, has established a strong reputation as a trustworthy manufacturer and supplier of premium Carbon Steel Round Bars and Rods. Well-known for their accuracy and longevity, Al Summan Metals follows international standards closely, guaranteeing that their products are designed to satisfy the requirements of diverse industrial and mechanical uses. Their Carbon Steel Round Bars and Rods are produced to provide outstanding strength, wear resistance, and machinability, making them reliable options for heavy-duty and high-stress settings. Owing to cutting-edge manufacturing methods, comprehensive quality control, and timely delivery, Al Summan Metals guarantees high-performance, durable steel products that serve a broad array of industries both within the UAE and across the world.
Composed mainly of carbon, manganese, silicon, phosphorus, and sulfur, these Carbon Steel Round Bars and Rods deliver an ideal combination of strength, hardness, and ductility. They generally offer tensile strength in the range of 400 to 700 MPa and yield strength from 250 to 450 MPa, varying according to the particular grade and heat treatment applied. Featuring excellent machinability, a smooth surface finish, and dependable wear resistance, these bars provide dimensional stability and toughness, which makes them well-suited to forming, machining, and fabrication processes. As a result, they are ideal for a wide range of industrial uses.
| Grade | Carbon Steel |
|---|---|
| Carbon Steel Square bar size | 4 to 100mm |

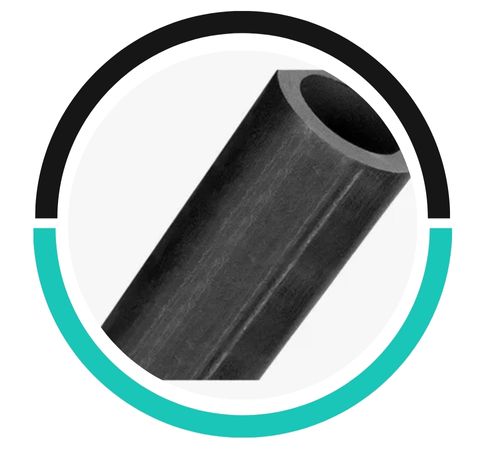

| CS Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |

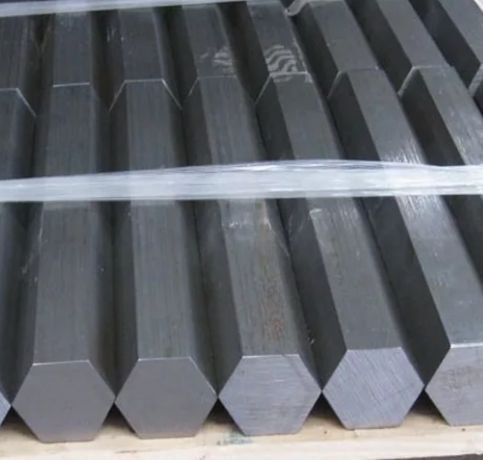

| Low Carbon Steel Hex Bar size | 2-100mm A/F |
| Carbon Steel Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| CS Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Low Carbon Steel Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Carbon Steel Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| CS Section | 3.0 to 12.0mm thickness |

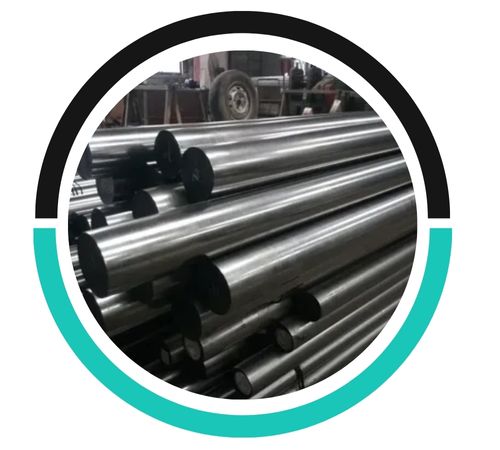

| Low Carbon Steel Round bar size | Diameter: 3-~800mm |
| Carbon Steel Billet Size | 1/2″ to 495mm Diameter |
| CS Round Bar Standard Dimensions | Diameter / Height: Carbon Steel Rod and Bar Sizes : 0.5 inches / 0.625 inches / 0.75 inches / 0.875 inches / 1.0 inches / 1.125 inches / 1.25 inches / 1.375 inches / 1.5 inches / 1.75 inches / 2.0 inches / 2.25 inches / 2.5 inches / 2.75 inches / 3.0 inches / 3.25 inches / 3.5 inches / 3.75 inches / 4.0 inches / 4.25 inches / 4.5 inches / 5.0 inches / 5.25 inches / 5.5 inches / 6.0 inches / 7.0 inches / 8.0 inches / 9.0 inches. |
| Carbon Steel Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| CS Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Low Carbon Steel Technique | Carbon Steel Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Carbon Steel Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Carbon Steel Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square Bar, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Carbon Steel Round bar conforms to NACE MR0175/ISO 15156 | |
| Carbon Steel Grades | C | Mn | Si | S Max. | P Max. |
|---|---|---|---|---|---|
| Ck 45 | 0.42/0.50 | 0.50/0.80 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 55 | 0.52/0.60 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| Ck 60 | 0.57/0.65 | 0.60/0.90 | 0.15/0.35 | 0.04 | 0.04 |
| SAE1006 | 0.08 max | 0.25/0.40 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1008 | 0.10 max | 0.30/0.50 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1010 | 0.08/0.13 | 0.30/0.60 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1018 | 0.15/0.20 | 0.60/0.90 | 0.10/0.30 | 0.05 | 0.04 |
| SAE1020 | 0.18/0.23 | 0.30/0.60 | 0.10/0.30 | 0.09 | 0.04 |
| SAE1030 | 0.28/0.34 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1035 | 0.32/0.38 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1040 | 0.37/0.44 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| SAE1045 | 0.40/0.50 | 0.60/0.90 | 0.10/0.40 | 0.05 | 0.04 |
| En-8D | 0.40/0.45 | 0.70/0.90 | 0.05/0.35 | 0.06 | 0.06 |
| En-9 | 0.50/0.60 | 0.50/0.80 | 0.05/0.35 | 0.06 | 0.06 |
| Grade | Yield Strength, | Tensile Strength, | Elongation at Break (in 50 mm) | Bulk Modulus (typical for steel) | Modulus of Elasticity | HBW | Poissons Ratio | Fatigue strength coefficient, of (Mpa) | Shear Modulus | Impacting Energy | Reduction of area, min: |
|---|---|---|---|---|---|---|---|---|---|---|---|
| a36 | 250 MPa | 400 – 550 MPa | 23.00% | 140 GPa | 200 GPa | 0.26 | 79.3 GPa | ||||
| 36300 psi | 58000 – 79800 psi | 23.00% | 20300 ksi | 29000 ksi | 0.26 | 11500 ksi | |||||
| EN45 | 35 (241) | 80 (551) | 40% | 204 Gpa | 948 | ≥63 | |||||
| EN19 | ≥930 Mpa | ≥1080 Mpa | ≥12 | 217 | ≥45 | ||||||
| 105 | 36,000 psi [250 MPa] | 70,000 psi (485 MPa] | 187 | 30% min | |||||||
| EN8 | ≥210 | ≥380 | ≥25 | ≤111HB | ≥50 |
You can purchase premium carbon steel bars and rods from trusted suppliers in the UAE, including Metal Supermarkets, Steel Express, and ParkerSteel, all of which provide an extensive selection of products.
The various categories of carbon steel bars and rods encompass cold-finished, hot-rolled, alloy, mild, high-carbon, low-carbon, and medium-carbon, offered in a range of shapes such as round, square, and hexagonal.
Yes, you can order Carbon Steel Round Bars and Rods in bespoke sizes and finishes from suppliers. These can be customized to satisfy particular needs like length, diameter, and finish.
Carbon Steel Round Bars and Rods are commonly found in use across the automotive, machinery, construction, and general engineering industries. They work exceptionally well for producing shafts, pins, bolts, fasteners, gears, and structural parts that demand both strength and precision. Because of their round profile, machining and threading for mechanical assemblies and tooling applications becomes effortless. On top of that, these bars and rods play a key role in industrial frameworks, agricultural equipment, and heavy-duty machinery where toughness and wear resistance matter greatly. Thanks to the adaptability, affordability, and mechanical dependability of Carbon Steel Round Bars and Rods, they remain a preferred option throughout many engineering and industrial fields.
We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
