Copper Nickel 70/30 Bars and Rods

Al Summan Metals, headquartered in Dubai, UAE, has built a strong reputation as a trustworthy manufacturer and supplier of premium Copper Nickel 70/30 Bars and Rods. Recognized for their accuracy, durability, and dedication to international standards, Al Summan Metals delivers products that are purpose-built for demanding marine, chemical, and industrial applications. Their Copper Nickel 70/30 Bars and Rods are widely valued for their outstanding corrosion resistance, remarkable strength, and enduring performance even in the most severe conditions. Through cutting-edge manufacturing methods, rigorous quality control, and timely delivery, Al Summan Metals ensures reliable and high-performance copper-nickel solutions that serve a wide range of industries both in UAE and across the globe, delivering durability, efficiency, and value.

Cupro Nickel 70/30 Bars Exporter in Ajman, Cupro Nickel 70/30 Square Bar Stockist in Dubai, DIN 2.0882 Hex Bar Supplier in UAE, ASME SB 111 Cupro Nickel 70/30 Rectangular Rod Distributor in UAE, Copper Nickel 70/30 Hex Rod Stockist in Sharjah ,Cupro Nickel 70/30 Square Rod Price in Ajman, Cu-Ni 70/30 Bars in UAE, UNS C71500 Forged Bar Manufacturer in Dubai, Cu-Ni 70/30 Polish Flat Bar Supplier in UAE, 70/30 CuNi Cold Drawn Round bar Supplier in United kingdom

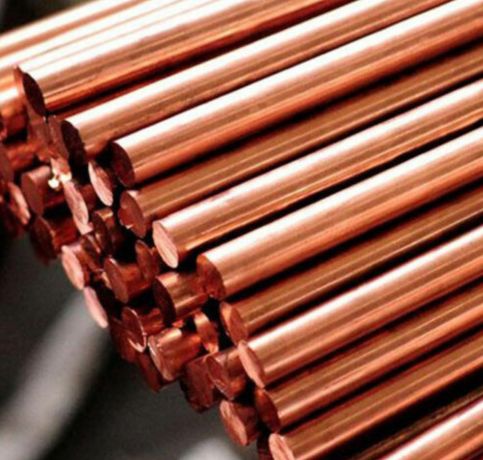

Copper Nickel 70/30 Cold Drawn Bars

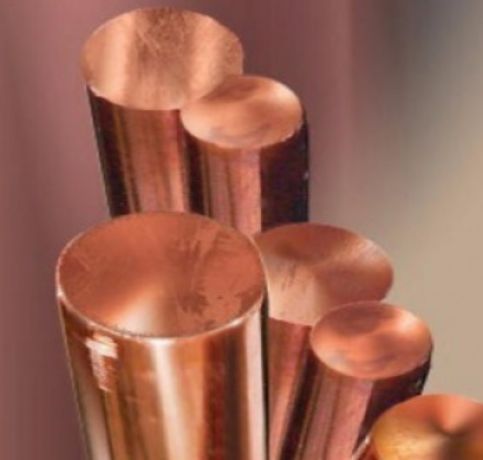

Cu-Ni 70/30 Bright Rods

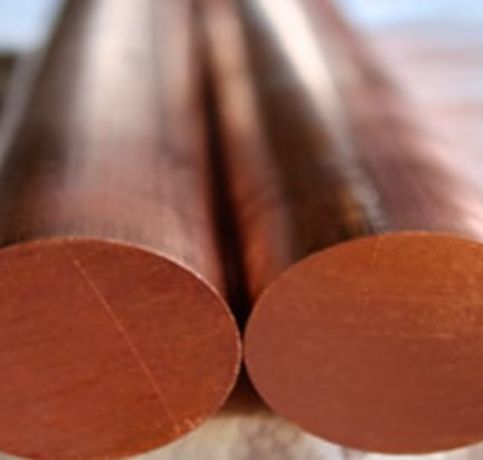

70/30 Cu-Ni Threaded Rods

These Copper Nickel 70/30 Bars and Rods consist of approximately 70% copper and 30% nickel, together with small quantities of iron and manganese, which help give them their outstanding corrosion resistance and mechanical strength. They generally display a tensile strength between 380 and 550 MPa and a yield strength ranging from 150 to 300 MPa, with an elongation of roughly 20 to 40%. These bars and rods are especially resistant to seawater corrosion, biofouling, and oxidizing environments, while also delivering good thermal and electrical conductivity. Their balanced composition ensures durability, toughness, and stability under harsh marine and industrial conditions.

Cupro Nickel UNS C71500 Bright Bar in Jebel Ali, ASME SB 111 Cupro Nickel 70/30 Flat Bar Supplier in UAE, 70/30 Cu-Ni Flat Bar Price List in Dubai, Stockist of Copper Nickel 70/30 Square Bar in Jebel Ali, Cu-Ni 70/30 Bars and Rods Exporter in Abu Dhabi, Cu-Ni 70/30 Rectangular Bar Exporter in UAE, Cu-Ni 70/30 Hot Rolled Round Bar Exporter in Sharjah, Cu-Ni 70/30 Cold Drawn Bars Manufacturer in Ajman, Cu-Ni 70/30 Black Bar Stockists in UAE, High Quality Copper Nickel 70/30 Rods Dealer in Abu Dhabi

Copper Nickel 70/30 Bars and Rods Specification

Standards	ASTM B151 / ASME SB151
Dimensions	EN, DIN, JIS, ASTM, BS, ASME, AISI all International Standards
Diameter	Outside Diameter in the range of 4mm to 500mm
Width	1m to 48″
Hex Bars	18mm – 57mm (11/16″ to 2-3/4″)
Square Bars	18mm – 47mm (11/16″ to 1-3/4″)
Flat Bars	1/2” to 10” in the thickness range of 2mm to 150mm
Wire Length	Max 12000 mm
Wire Diameter	5.5 – 400 mm
Length	1 to 6 Meters, Custom Cut Lengths
Types	Round, Square, Hex (A/F), Flat, Square, Rectangle, Billet, Ingot, Forging, Wire Bobbin, Wire Spool, Wire Rope, Spring Wires, Welding Wire, Coiled Wire Etc.

Chemical Compositions of Copper Nickel 70/30 Bars and Rods

Grade	Cu	Mn	Pb	Ni	Fe	Zn
Copper Nickel 70/30	65.0 min	1 max	.05 max	29-33	0.4-1.0	1 max

Copper Nickel 70/30 Bars and Rods Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
0.323 lb/in3 at 68 F	2260 °F	Psi – 50000	Psi – 20000	30 %

Copper Nickel 70/30 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS
Copper Nickel 70/30	2.0882	C71500

You Need Our Support, to Have Any Projects?

Test Certificate

Why Al Summan Metals?

Packaging

Copper Nickel 70/30 Bars and Rods Sizes

Metric		US Rods		ASTM/ Canadian		Japanese
Rods Size	Diam. (mm)	Rods Size	Diam. (Inch)	Rods Size	Diam. (mm2)	Rods Size	Diam. (mm)
5	5	#2	0.250	10M	100	6	6
5.5	5.5	#3	0.375	15M	200	10	10
6	6	#4	0.500	20M	300	13	13
7	7	#5	0.600	25M	500	16	16
8	8	#6	0.750	30M	700	19	19
9	9	#7	0.875	35M	1000	22	22
10	10	#8	1.000	45M	1500	25	25
11	11	#9	1.125	55M	2500	29	29
12	12	#10	1.250			32	32
14	14	#11	1.375			35	35
16	16	#12	1.500			38	38
18	18	#13	1.600			41	41
20	20	#14	1.750			44	44
22	22	#15	1.875			48	48
25	25	#16	2.000			51	51
28	28	#18	2.250			57	57
32	32
36	36
40	40
44	44
50	50

Weight Chart of Copper Nickel 70/30 Bars and Rods

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper Nickel 70/30 Bars and Rods Types

Cu-Ni DIN 2.0882 Hex Bar Dealer in Dubai, AISI 70/30 Hex Bar Supplier in Jebel Ali, 70/30 Copper Nickel Hex Bar Manufacturer in Abu Dhabi, ASTM B151 70/30 Copper Nickel Forged Rods Supplier in Sharjah, Cupronickel 70/30 Rectangle Bar Size Chart, Copper Nickel 70/30 Solid Rod Price in Ajman, UNS C71500 70/30 Copper Nickel Square Bars and Rods Supplier in UAE, ASME SB151 70/30 Cu Ni Half Round Bars Stockist in Abu Dhabi, Cupronickel 2.0882 Threaded Bar Supplier in Dubai

Frequently Asked Questions (FAQ)

Are Copper Nickel 70/30 Bars and Rods Suitable For Hygienic And Sanitary Applications?

Yes, Copper Nickel 70/30 bars and rods work well for hygienic and sanitary uses thanks to their corrosion resistance, antimicrobial qualities, and durability, which makes them well-suited for the food, beverage, and medical industries.

Can Copper Nickel 70/30 Bars and Rods Be Recycled After Use?

Copper Nickel 70/30 bars and rods are indeed recyclable once they have been used. Their properties are preserved during recycling, which makes them an eco-friendly material that can be reused across a range of applications.

How Are Copper Nickel 70/30 Bars and Rods Sized?

Copper Nickel 70/30 bars and rods are measured by their diameter in the case of round bars, or by width and thickness in the case of rectangular bars, generally given in inches or millimeters.

Copper Nickel 70/30 Bars and Rods Uses

Copper Nickel 70/30 Bars and Rods are widely applied across marine, offshore, chemical, and desalination industries. They work perfectly for building piping systems, heat exchangers, condensers, pump shafts, valves, and fittings subjected to seawater and corrosive conditions. Additionally, they serve in shipbuilding, power plants, and chemical processing equipment thanks to their ability to withstand corrosion, cavitation, and biofouling. Their blend of strength, corrosion resistance, and lasting reliability makes Copper Nickel 70/30 Bars and Rods the preferred option for essential marine and industrial engineering projects.
