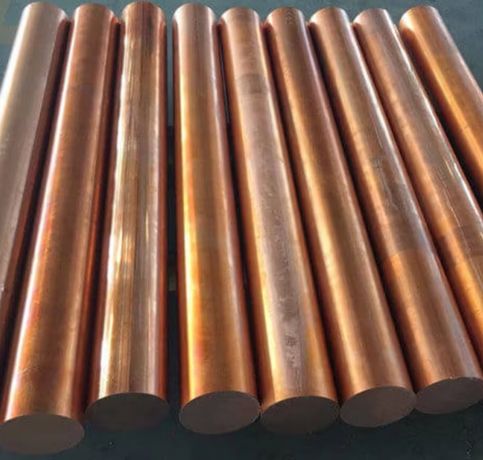

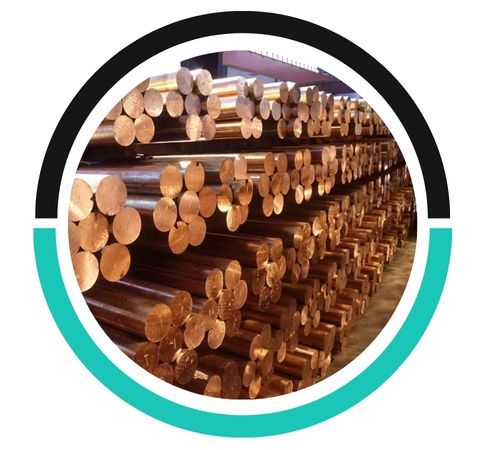

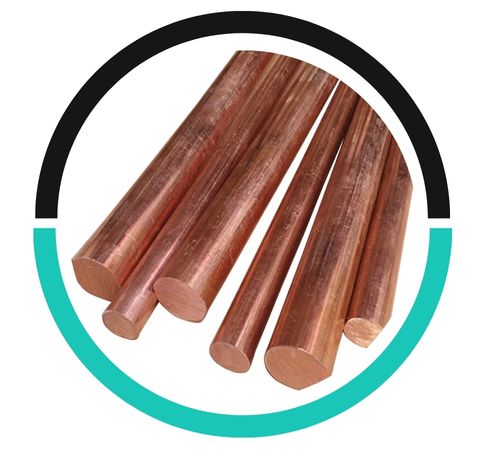

Al Summan Metals, a leading manufacturer and supplier based in Dubai, UAE, focuses on producing high-quality Copper Nickel Bright Bars. These bars are renowned for their remarkable corrosion resistance, strength, and exceptional surface finish. Through the use of advanced manufacturing methods and stringent quality controls, Al Summan Metals ensures that every Bright Bar not only complies with international standards but also delivers dependable performance in demanding industrial and marine environments. Recognized for their capacity to resist seawater, chemical corrosion, and oxidation, Copper Nickel Bright Bars are ideal for precision engineering, offshore ventures, and the chemical industry. Al Summan Metals provides sturdy, high-performance copper-nickel solutions that combine durability, precision, and enduring reliability.
These Copper Nickel Bright Bars are primarily made up of copper (70–90%) and nickel (10–30%), along with small quantities of iron and manganese that enhance their corrosion resistance and mechanical strength. When it comes to mechanical properties, they feature a tensile strength between 300 and 500 MPa, yield strength ranging from 100 to 300 MPa, and elongation of 30 to 50%. The material is recognized for its outstanding ductility, thermal conductivity, and resistance to pitting, crevice corrosion, and biofouling, which makes it an excellent choice for high-performance uses in marine and chemical settings.
Specification :EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification :ASTM B111 / ASME SB111
Size :15NB up to 150NB IN
Diameter :3.17mm up to 350mm diameter
Length :100 mm up to 3000 mm Long & Above
Tolerance :H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or according to clients’ requirements
Finish :Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form :Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface :Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Hairline
Condition :Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
| Bar Diameter (mm) | Weight (kg/m) |
|---|---|
| 6 | 0.22 |
| 8 | 0.39 |
| 10 | 0.62 |
| 12 | 0.89 |
| 16 | 1.58 |
| 20 | 2.47 |
| 25 | 3.85 |
| 32 | 6.31 |
| 40 | 9.86 |
| 45 | 12.5 |
| 50 | 15.4 |
| 60 | 22.2 |
| 65 | 26.0 |
| 75 | 34.7 |
| 90 | 49.9 |
| 100 | 61.6 |
Yes, Copper Nickel bright bars can be extensively tailored in terms of dimensions, lengths, and surface finishes to satisfy particular industry demands, delivering customized solutions for diverse applications and projects.
Copper Nickel Bright Bars are extensively employed across marine, offshore, chemical, and desalination sectors, owing to their outstanding corrosion resistance, durability, and smooth finish. They see frequent use in pump shafts, fasteners, heat exchanger components, piping systems, and precision machinery parts that are exposed to seawater or aggressive chemicals. Beyond this, they serve a vital function in shipbuilding, power generation, and offshore structures where sustained reliability and resistance to erosion and oxidation are essential. Given their remarkable mechanical properties and accurate dimensions, Copper Nickel Bright Bars stand as the preferred option for producing high-performance components that call for strength, precision, and lasting operational efficiency.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
