Incoloy 825 Bars/Rods

Al Summan Metals is a dependable manufacturer and supplier of Incoloy 825 Bars and Rods, based in Dubai, UAE. They supply high-quality nickel-iron-chromium superalloys that are ideal for demanding industrial applications. The company takes pride in employing advanced manufacturing methods, upholding rigorous quality control, and adhering to international standards to guarantee that their materials provide consistent performance and reliability. Al Summan Metals’ Incoloy 825 bars and rods are renowned for their exceptional resistance to corrosion, oxidation, and high-temperature degradation, which makes them perfect for critical components in harsh environments. Committed to on-time delivery, competitive pricing, and customer satisfaction, Al Summan Metals serves the chemical, petrochemical, marine, and power generation industries with premium alloy solutions.

Incoloy 825 Bars Supplier in UAE, Incoloy UNS N08810 Hollow Rods Price List in Dubai, Incoloy Alloy 2.4858 Rectangular Bars Supplier in Jebel Ali, Incoloy DIN 2.4858 Hexagonal Bars Exporter in Abu Dhabi, Incoloy 825 T-Bars Exporter in UAE, Incoloy 825 Flat Rods Exporter in Sharjah, ASME SB408 Incoloy Alloy 825 Flat Bars UAE, Incoloy UNS N08825 Hollow Round Bar Manufacturer in Ajman, Incoloy Alloy 825 Round Bars Distributor in UAE, Incoloy 825 Polished Rods Dealer in Abu Dhabi

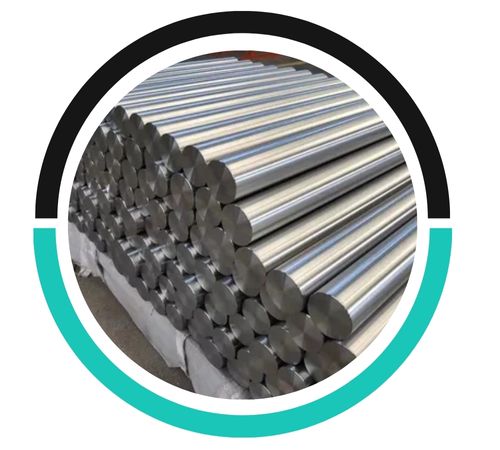

Incoloy 825 Round Bars

Incoloy 825 Rectangular Bars

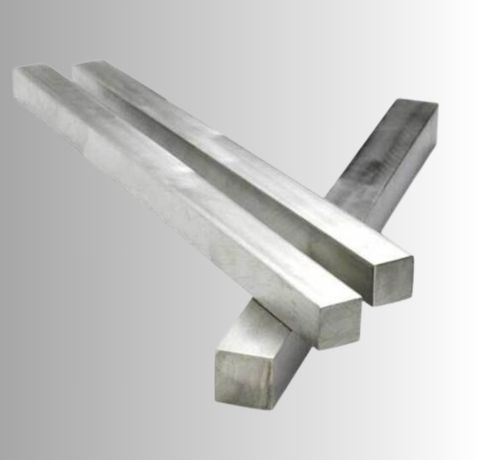

Incoloy 825 Square Rods

Incoloy 825 Bars and Rods consist mainly of nickel, iron, and chromium, along with added molybdenum and copper, giving them outstanding resistance to corrosion, pitting, and stress-corrosion cracking. These bars deliver excellent tensile strength, solid ductility, and remarkable toughness over a broad temperature range. Incoloy 825 keeps its mechanical stability even under highly corrosive and oxidizing conditions, making it an ideal option for demanding industrial environments. The alloy’s well-balanced composition delivers dependable performance in both aqueous and high-temperature applications, while also ensuring dimensional stability and lasting durability in critical components.

Incoloy 825 Rods Dealer in Abu Dhabi, Incoloy 825 Round Bars Manufacturer in Abu Dhabi, Incoloy DIN 2.4858 Square Bars Supplier in Sharjah, Incoloy Alloy 825 Flat Bars Price List in Dubai, Incoloy 825 Rectangular Bars Supplier in Ajman, Incoloy 825 Bars Price List in UAE, Incoloy Alloy 825 Round Bars Exporter Stockist in Jebel Ali, Stockist of Incoloy 825 Round Bars in Jebel Ali

Incoloy 825 Bars and Rods Specification

Incoloy 825 Material Specification: ASTM B425/ ASME SB425 Inco 825

Grade: Inconel 600 (UNS N06600, Alloy 600, 2.4816), Inconel 601 (UNS N06601, Alloy 601, 2.4851), ASTM B425 Inconel 625 (UNS N06625, Alloy 625, 2.4856), Inconel 800 (UNS N08800, Alloy 800, 1.4876)

Form: Round, Square, Hex (A/F), Bush, Rectangle, Flat, Billet, Ingot, Forging, PSQ Bar, Wire Rod, Wire (Coil Form), Wire-mesh etc.

Size Range: 15NB to 150NB In manufacturing process: Cold drawn/ Extruded

Length: 100 mm To 3000 mm Long & Above

Diameter (Size) :Metric M6 to M48, Inches – 1/4’’ to 2’’

Tolerance :H8, H9, H10, H11, H12, H13, K9, K10, K11, K12 or as per clients’ requirements

Finish :Cold Drawn, Shot Blast & Drawn, 240 Grit Belt Polished, Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish, High Polished

Condition :Cold Drawnd Polished Cold Drawn Centreless Ground & Polished, Threading

Surface :Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline

Chemical Compositions of Incoloy 825 Rods

Grade	C	Mn	Si	S	Cu	Fe	Ni	Cr	Al	Ti
825	0.05 max	1.00 max	0.5 max	0.03 max	1.50 – 3.00	22.00 min	38.00 – 46.00	19.50 – 23.50	0.02 max	0.06 – 1.20

Incoloy 825 Bars Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
825	8.14 g/cm3	1400 °C (2550 °F)	Psi – 80,000 , MPa – 550	Psi – 32,000 , MPa – 220	30 %

Incoloy 825 Bars and Rods Equivalent Grades

STANDARD	WERKSTOFF NR.	UNS	JIS	BS	GOST	AFNOR	EN	OR
Incoloy 825	2.4858	N08825	NCF 825	NA 16	ЭП703	NFE30C20DUM	NiCr21Mo	XH38BT

You Need Our Support, to Have Any Projects?

Test Certificate

Why Al Summan Metals?

Packaging

Weight Chart of Incoloy 825 Bars and Rods

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy 825 Bars and Rods Types

ASTM B166 Incoloy Alloy 825 Rectangular Rods Exporter in UAE, Incoloy 2.4858 Round Bars Stockist in Dubai, Incoloy 825 Hex Bars Supplier in UAE, Incoloy UNS N08825 Cold Drawn Round Bars Distributor in UAE, ASTM B166 Incoloy Alloy 825 Rods Stockist Ajman Incoloy 825 Rods Price in Ajman, Incoloy 825 Round Bars, Incoloy DIN 2.4858 Rectangular Bars Supplier in UAE

Frequently Asked Questions (FAQ)

Are Incoloy 825 Bars and Rods Corrosion-Resistant?

Yes, Incoloy 825 Bars and Rods offer strong resistance to corrosion, especially when exposed to acids such as sulfuric and phosphoric acid. Thanks to their composition of nickel, iron, and molybdenum, they deliver outstanding protection against pitting, crevice corrosion, and stress corrosion cracking.

Can Incoloy 825 Bars and Rods be Customized in Size and Length?

Yes, Incoloy 825 Bars and Rods can be tailored in both size and length to satisfy particular application needs. They come in a range of dimensions, providing flexibility for a wide variety of industries.

How Do Incoloy 825 Bars and Rods Perform in High-Temperature Environments?

Incoloy 825 Bars and Rods deliver outstanding performance in high-temperature settings, preserving their strength and stability. They demonstrate superior resistance to oxidation and scaling when exposed to elevated temperatures.

Incoloy 825 Bars and Rods Uses

Incoloy 825 Bars and Rods find broad use across industries needing materials that withstand corrosion, heat, and chemical attacks. You will typically encounter them in chemical and petrochemical plants within heat exchangers, reactor vessels, and piping systems. For marine purposes, Incoloy 825 serves in seawater handling equipment, desalination plants, and offshore components. On top of that, this alloy is used in power generation, pollution control, and pharmaceutical processing equipment. With its outstanding corrosion resistance, high strength, and durability, Incoloy 825 stands out as a leading option for many demanding applications.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products supplied with both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
