Inconel Flat Bars

Al Summan Metals, a first-rate manufacturer and supplier based in Dubai, UAE, has earned a strong reputation for producing high-quality **Inconel Flat Bars** ideally suited to challenging industrial and high-temperature uses. These flat bars are known for their outstanding strength, corrosion resistance, and thermal stability, allowing them to withstand extreme conditions while retaining their shape and mechanical properties. Al Summan Metals employs advanced manufacturing techniques and rigorous quality control practices to ensure consistent quality, dependability, and extended service life. Serving sectors such as aerospace, chemical processing, petrochemical, and power generation, the company supplies Inconel flat bars that deliver superior performance, operational efficiency, and durability for critical applications.

Inconel Flat Rods Exporter in UAE, Alloy Flat Bars Stockist in Dubai, Inconel Flat Bar Supplier in UAE, Inconel Cold Drawn Flat Bars Distributor in UAE, Alloy Flat Rods Stockist Ajman Inconel Flata Bars Price in Ajman, Inconel Flat Bar & Rods Jebel Ali, Inconel Bright Flat Bars Weight Calculator in UAE, Inconel Alloy Flat Bar Supplier in Jebel Ali, Alloy Cold Drawn Flat Rods Exporter in Abu Dhabi

Custom-Finished Inconel Flat Bars

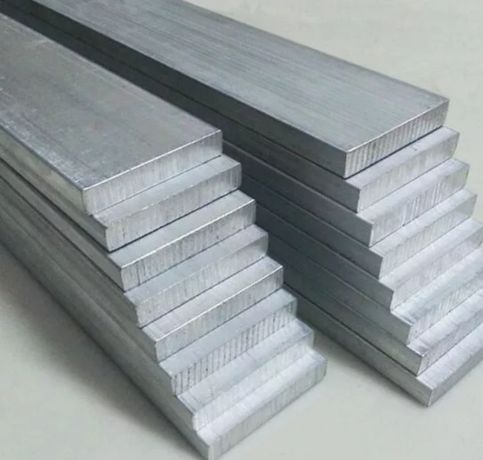

Black Inconel Alloy Flat Bars

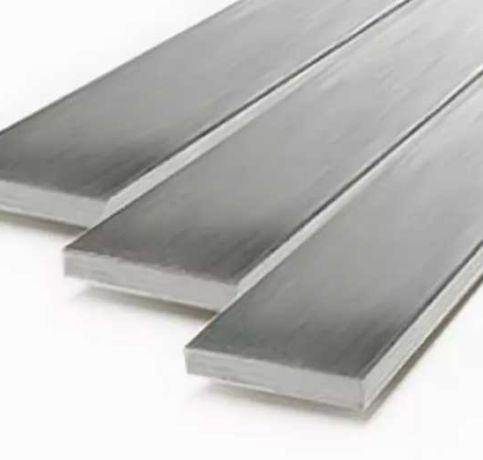

Ground Inconel Alloy Flat Rods

What is Inconel Hex Bars?

Inconel Flat Bars are chiefly composed of nickel and chromium, with supplementary elements such as iron, molybdenum, and cobalt differing from grade to grade. This distinctive combination delivers exceptional resistance to oxidation, corrosion, and thermal breakdown even under high temperatures. From a mechanical standpoint, Inconel flat bars offer remarkable tensile and yield strength, outstanding creep resistance, and top-tier fatigue performance. These traits make them a preferred option for applications requiring durability, dimensional stability, and dependable performance in severe thermal and chemical conditions.

Inconel Polished Flat Bars Size Chart in UAE, Inconel Bright Flat Rods Exporter in Sharjah, Alloy Flat Bar Manufacturer in Ajman, Inconel Flat Bars Distributor in UAE, Inconel Alloy Flat Rods Dealer in Abu Dhabi, Inconel Flat Bars Supplier in UAE, Inconel Flat Bars Stockist in Jebel Ali

Inconel Flat Bars Specifications

Size range	12 mm – 46 mm (1/2 inch- 1 ¾ inch)
Flat Bar Size Range	Thickness: 2 -100mm / Width: 10 to 500mm
Manufacturing Technique	Hot Rolled, Cold Drawn, Cold Rolled, Forged
Crack Test	Magnetic Particle Inspection (MPI)
Length	2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement
Size Tolerances	h10 and h11
Chamfering	Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine
Surface Finish	Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black
Heat Treatment	Annealed, Solution Annealed
Tolerance	H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements

You Need Our Support, to Have Any Projects?

Test Certificate

Why Al Summan Metals?

Packaging

Inconel Flat Bars Chemical Composition

	Ni	Cr	Fe	Mo	Nb+Ta	C	Mn	Si	Ph	S	Al	Ti	Co
Min	Bal	20	–	8	3.15	–	–	–	–	–	–	–	–
Max	–	23	5	10	4.15	0.10	0.50	0.50	0.015	0.015	0.40	0.40	1.0

Inconel Flat Bars Mechanical Properties

0.2% Proof Stress	Tensile Strength	Elongation	Reduction of area	Hardness
MPA	MPA	%	%	HRB
Min	Min	Min	Min	Min
414	827	30	40	145

Inconel Flat Bar Sizes

Flat Size	KG’s per Metre	Standard Length (m)
10 x 3	0.24	6.0
13 x 3	0.31	6.0
13 x 5	0.46	6.0
16 x 3	0.38	6.0
16 x 5	0.64	6.0
16 x 8	1.03	6.0
20 x 3	0.48	6.0
20 x 5	0.81	6.0
20 x 6	0.97	6.0
20 x 10	1.61	6.0
25 x 3	0.60	6.0
25 x 5	1.01	6.0
25 x 6	1.21	6.0
25 x 8	1.61	6.0
25 x 10	2.01	6.0
25 x 12	2.41	6.0
32 x 3	0.77	6.0
32 x 5	1.29	6.0
32 x 6	1.55	6.0
32 x 8	2.06	6.0
32 x 10	2.58	6.0
32 x 12	3.09	6.0
40 x 3	0.97	6.0
40 x 5	1.61	6.0
40 x 6	1.93	6.0
40 x 8	2.58	6.0
40 x 10	3.22	6.0
40 x 12	3.86	6.0
40 x 16	5.15	6.0
40 x 20	6.14	6.0
50 x 3	1.21	6.0
50 x 5	2.01	6.0
50 x 6	2.41	6.0
50 x 8	3.22	6.0
50 x 10	4.02	6.0
50 x 12	4.83	6.0
50 x 16	6.44	6.0
50 x 20	8.05	6.0
50 x 25	10.1	6.0
65 x 3	1.57	6.0
65 x 5	2.62	6.0
65 x 6	3.14	6.0
65 x 8	4.18	6.0
65 x 10	5.23	6.0
65 x 12	6.28	6.0
65 x 16	8.37	6.0
65 x 20	10.5	6.0
65 x 25	13.1	6.0
75 x 5	3.02	6.0
75 x 6	3.62	6.0
75 x 8	4.83	6.0
75 x 10	6.04	6.0
75 x 12	7.24	6.0
75 x 16	9.66	6.0
75 x 20	12.1	6.0
75 x 25	15.1	6.0
75 x 40	24.1	6.0
90 x 5	3.62	6.0
90 x 6	4.35	6.0
90 x 8	5.79	6.0
90 x 10	7.24	6.0
90 x 12	8.69	6.0
100 x 5	4.02	6.0
100 x 6	4.83	6.0
100 x 8	6.44	6.0
100 x 10	8.05	6.0
100 x 12	9.66	6.0
100 x 16	12.9	6.0
100 x 20	16.1	6.0
100 x 25	20.1	6.0
100 x 50	40.2	6.0
110 x 6	5.31	6.0
110 x 8	7.08	6.0
110 x 10	8.85	6.0
110 x 12	10.6	6.0
130 x 5	5.23	6.0
130 x 6	6.28	6.0
130 x 8	8.37	6.0
130 x 10	10.5	6.0
130 x 12	12.6	6.0
130 x 16	16.7	6.0
130 x 20	20.9	6.0
130 x 25	26.2	6.0
150 x 5	6.04	6.0
150 x 6	7.24	6.0
150 x 8	9.66	6.0
150 x 10	12.1	6.0
150 x 12	14.5	6.0
150 x 16	19.3	6.0
150 x 20	24.1	6.0
150 x 25	30.1	6.0
150 x 50	60.4	6.0
180 x 5	7.24	6.0
180 x 6	8.69	6.0
180 x 10	14.5	6.0
180 x 12	17.4	6.0
180 x 16	23.2	6.0
180 x 20	29.0	6.0
180 x 25	36.2	6.0
200 x 6	9.66	6.0
200 x 8	12.9	6.0
200 x 10	16.1	6.0
200 x 12	19.3	6.0
200 x 16	25.7	6.0
200 x 20	32.2	6.0
200 x 25	40.3	6.0
250 x 6	12.1	6.0
250 x 8	16.1	6.0
250 x 10	20.1	6.0
250 x 12	24.1	6.0
250 x 16	32.2	6.0
250 x 20	40.2	6.0
250 x 25	50.3	6.0
300 x 6	14.5	6.0
300 x 8	19.3	6.0
300 x 10	24.1	6.0
300 x 12	29.0	6.0
300 x 16	38.6	6.0
300 x 20	48.3	6.0
300 x 25	60.4	6.0

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Inconel Flat Bars and Rods Types

Inconel Flat Rods Dealer in Abu Dhabi, Inconel Flat Bars Manufacturer in Abu Dhabi, Inconel Cold Drawn Flat Bar Supplier in Sharjah, Inconel Flat Bars Size Chart, Inconel Rods Price in Ajman, Stockist of Inconel Flat Bars in Jebel Ali, Weight Calculator of Flat Rods Supplier in UAE, Alloy Flat Bar Price List in Dubai

Frequently Asked Questions (FAQ)

Are Inconel Flat Bars Customizable?

Yes, we supply bars and rods in both standard and custom sizes and finishes to suit your particular project needs. For further information, email us at sales@alsummanmetals.ae

How Do I Maintain Inconel Flat Bars?

Maintaining Inconel Flat Bars requires keeping them stored properly in cool, dry conditions to avoid oxidation. Check them frequently for signs of damage or wear, and use non-abrasive cleaning techniques to keep the surface intact.

Are Inconel Flat Bars Suitable For Cryogenic Applications?

Yes, Inconel Flat Bars work well for cryogenic applications. They maintain their strength and resistance to brittleness even at extremely low temperatures, which makes them well-suited for use in cryogenic environments.

Inconel Flat Bars Uses

**Inconel Flat Bars** are suited to industries requiring materials that withstand heat and corrosion. They are frequently applied in aerospace components, turbine parts, and high-temperature structural elements. Within the chemical and petrochemical sectors, they appear in reactor vessels, heat exchangers, piping, and valve components exposed to corrosive environments. Their outstanding mechanical strength, thermal stability, and oxidation resistance also make them well suited for power generation, marine, and heavy engineering uses. Inconel flat bars deliver lasting reliability, efficiency, and performance in demanding industrial conditions.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
