Al Summan Metals, based in Dubai, UAE, has established a strong reputation as a trustworthy manufacturer and supplier of Nimonic 115 Bars and Rods. These products are known for their outstanding high-temperature strength, corrosion resistance, and remarkable long-term durability. The company focuses on producing high-quality nickel-based superalloy bars and rods that comply with international standards, guaranteeing excellent performance in challenging industrial and aerospace environments. With their cutting-edge manufacturing methods and stringent quality control, Al Summan Metals delivers Nimonic 115 Bars and Rods that offer superior dimensional accuracy, mechanical stability, and reliability—making them ideal for applications where high strength and oxidation resistance at elevated temperatures are essential.
Nimonic 115 Bars and Rods consist mainly of nickel, together with 19–21% chromium, 1–2% titanium, 1–2% aluminum, and small quantities of cobalt and iron. This distinctive alloy provides remarkable tensile strength of roughly 1100 MPa and a yield strength of about 850 MPa, while preserving its mechanical integrity at temperatures reaching as high as 1000°C. Thanks to its composition, it offers excellent creep resistance, oxidation resistance, and thermal stability, which makes it a perfect selection for high-stress, high-temperature uses in the aerospace and power generation industries.
| Grade | Nimonic 115 – UNS |
|---|---|
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS |
| Nimonic 115 Round bar size | Diameter: 3mm~800mm |
| Nimonic 115 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nimonic 115 Square bar size | 4mm*4mm~100mm*100mm |

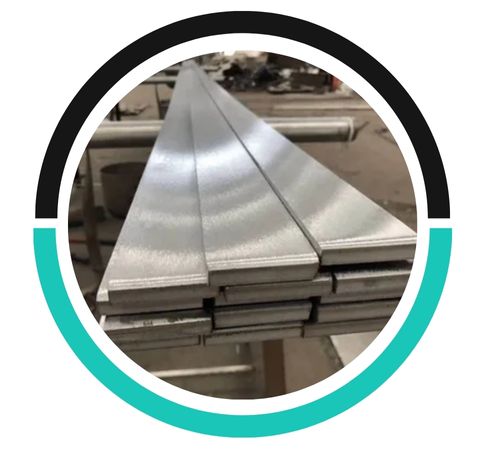

| Nimonic 115 Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |

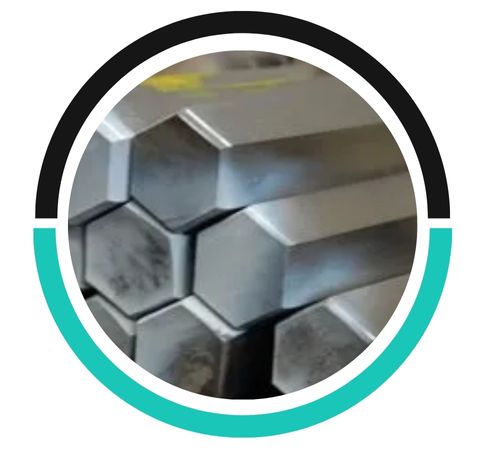

| Nimonic 115 Hex Bar size | 2mm~100mm |
| Nimonic 115 Billet Size | 1/2″ to 495mm Diameter |
| Nimonic 115 Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Nimonic 115 Round Bar Standard Dimensions | Diameter / Height:As the customer required |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Nimonic 115 Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Element | Content (%) |
|---|---|
| Nickel, Ni | 54 |
| Chromium, Cr | 14.0-16.0 |
| Cobalt, Co | 13.0-15.5 |
| Aluminum, Al | 4.50-5.50 |
| Molybdenum, Mo | 3.0-5.0 |
| Titanium, Ti | 3.50-4.50 |
| Iron, Fe | 1.0 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Copper, Cu | 0.20 |
| Zirconium, Zr | 0.15 |
| Carbon, C | 0.12-0.20 |
| Sulfur, S | 0.015 |
| Boron, B | 0.010-0.025 |
| Tensile Strength | Min 185KSI | Min 1277MPA |
| Yield Strength | Min 141KSI | MIN 973MPA |
| Elongation | Min 38% |
| Alloy Name | Trade Name | UNS No. | British Specs | American Specs | German Specs | French Specs |
|---|---|---|---|---|---|---|
| Alloy 115 | Nimonic 115 | BS HR4 | WS 2.4636 | AFNOR NCK 15ATD |
Nimonic 115 rods come in diameters from 1/8" to 4". Available finishes are cold drawn, polished, and rough turned, making them ideal for high-temperature applications.
Nimonic 115 rods are generally available in standard sizes with diameters spanning 1/8" to 6", and lengths that range from 3' to 20' based on the manufacturer and customer specifications.
Nimonic 115 rods can indeed be provided in polished as well as matte finishes, based on the particular requirements and customer preferences. Such finishes can be obtained from a range of suppliers.
These Nimonic 115 Bars and Rods are employed in a range of applications requiring high-temperature performance along with resistance to oxidation and stress rupture. They frequently serve in turbine blades, combustion chambers, exhaust systems, and jet engine components. Across the power generation and petrochemical sectors, they appear in high-temperature fasteners, furnace parts, and gas turbine components. Thanks to their outstanding strength, durability, and heat resistance, Nimonic 115 Bars and Rods are the preferred option for critical engineering applications where reliable performance under extreme conditions is essential.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
