Nimonic Bars and Rods

Al Summan Metals, based in Dubai, UAE, distinguishes itself as a leading manufacturer and supplier of Nimonic Bars and Rods, renowned for their impressive high-temperature strength, corrosion resistance, and overall durability. The company concentrates on producing nickel-based superalloy bars and rods engineered to comply with international standards, rendering them ideal for demanding industrial and aerospace applications. Through its dedication to precision manufacturing and stringent quality control, Al Summan Metals ensures that every Nimonic Bar and Rod provides outstanding mechanical performance, accurate dimensions, and enduring reliability. This positions them as a superb option for high-stress, high-temperature settings encountered in the aerospace, power generation, and chemical processing industries.

Nimonic Rods Price in Ajman, Pure Nimonic Round Bars UAE, Nimonic Rectangular Bars Supplier in UAE, Nimonic Rectangular Rods Exporter in UAE, Pure Nimonic Round Bars Stockist in Dubai, Nimonic Hex Bars Supplier in UAE, Nimonic Cold Drawn Round Bars Distributor in UAE, Nimonic Rods Stockist Ajman

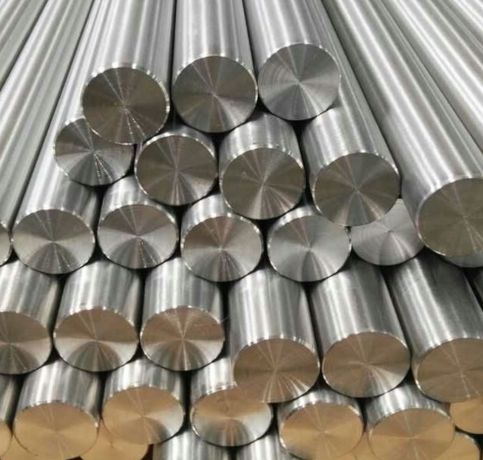

Nimonic Round Bars

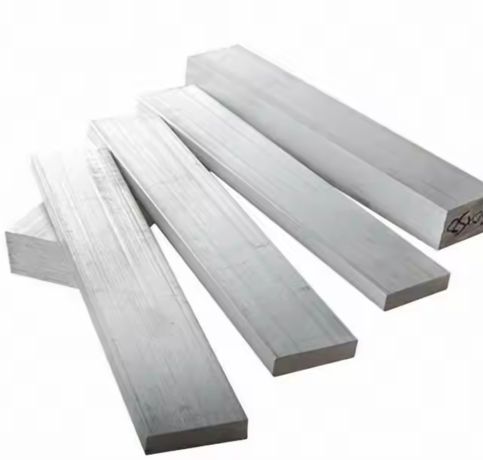

Nimonic Rectangular Bars

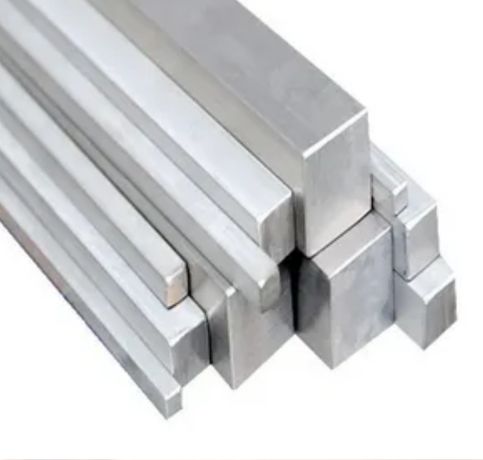

Nimonic Square Rods

What is Nimonic Bars and Rods?

Nimonic Bars and Rods are composed chiefly of nickel, with differing amounts of chromium, cobalt, titanium, and aluminum adjusted to particular grades. This distinctive makeup gives them remarkable tensile strength, creep resistance, and oxidation resistance even at high temperatures. Their tensile strength generally falls between 900 and 1200 MPa, demonstrating exceptional yield strength, hardness, and thermal stability. The alloy holds onto its structural integrity even during extended exposure to high temperatures, pressure, and corrosive conditions, guaranteeing dependable performance in vital engineering applications.

Nimonic Bars Price List in UAE, Nimonic Round Bars Exporter Stockist in Jebel Ali, Stockist of Nimonic Round Bars in Jebel Ali, Pure Nimonic Bars Weight Chart, Nimonic Rods Dealer in Abu Dhabi, Nimonic Round Bars Manufacturer in Abu Dhabi, Nimonic Square Bars Supplier in Sharjah, Pure Nimonic Flat Bars Price List in Dubai, Nimonic Rectangular Bars Supplier in Ajman

Nimonic Bars and Rods Specification

Standards :	BS HR 5, BS HR 504, DIN 17752, AECMA PrEN2306, AECMA PrEN2307, AECMA PrEN2306, AECMA Pr EN2307, AECMA PrEN2402, ISO 9723, ISO 9724, ISO 9725, MSRR 7004
Dimensions :	EN, DIN, JIS, ASTM, BS, ASME, AISI
Wire :	Thickness starting from 0.05mm
Round bar size :	Diameter: 3-~800mm
Hex Bar size :	2-100mm A/F
Flat bar size :	Thickness: 2 -100mm / Width: 10 to 500mm
Square bar size :	4 to 100mm
Rectangular Bars Size :	33 x 30mm to 295 x 1066mm
Hollow Bar :	32mm OD x 16mm ID to 250mm OD x 200mm ID
Tolerance :	H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish :	Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish

Chemical Compositions of Nimonic Bars

Grade	C	Mn	Si	Cu	Fe	Ni	Cr	Ti
Nimonic 75	0.08-0.15	1.0 max	1.0 max	0.5 max	5.0 max	Bal	18.0-21.0	0.2-0.6

Nimonic Bars Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.37g/cm3	1340 – 1380	Psi – 104,000	Psi – 40,000	42 %

Equivalent Grades of Nimonic Bar

STANDARD	WERKSTOFF NR.	UNS
Nimonic 75	2.4951 / 2.4630	N06075

You Need Our Support, to Have Any Projects?

Test Certificate

Why Al Summan Metals?

Packaging

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Nimonic Bars and Rods Types

Nimonic Round Bars Size Chart, Nimonic Polished Rods Dealer in Abu Dhabi, Nimonic Bars Supplier in UAE, Nimonic Hollow Rods Price List in Dubai, Pure Nimonic Rectangular Bars Supplier in Jebel Ali, Nimonic Hexagonal Bars Exporter in Abu Dhabi, Nimonic T-Bars Exporter in UAE, Pure Nimonic Flat Rods Exporter in Sharjah, Nimonic Flat Bars UAE, Nimonic Hollow Round Bar Manufacturer in Ajman

Frequently Asked Questions (FAQ)

Are Nimonic Rod Susceptible To Galvanic Corrosion?

Nimonic rods can be vulnerable to galvanic corrosion when they come into contact with more electropositive metals, particularly when an electrolyte is present. Applying suitable insulation or coating can help reduce this risk.

What Sizes and Finishes Are Available for Nimonic Bar ?

Nimonic bars come in a range of dimensions, from small diameters (6mm) up to larger ones (as much as 200mm). Typical finishes include hot rolled, cold drawn, and polished.

Can Nimonic Bar Be Welded?

Yes, Nimonic alloys, such as Nimonic 75 and 80A, are weldable. That said, correct welding techniques along with pre- and post-weld heat treatment are crucial to prevent cracking and maintain strength.

Nimonic Bar and Rod Uses

These Nimonic Bars and Rods are widely used across industries that demand outstanding high-temperature strength and resistance to corrosion. They are ideal for manufacturing turbine blades, combustion chambers, exhaust systems, furnace components, and high-temperature fasteners. Within the aerospace sector, they are applied in jet engines, gas turbines, and rocket components. Furthermore, they serve the power generation, petrochemical, and chemical processing industries, where durability, heat resistance, and mechanical stability are essential. Owing to their exceptional properties, Nimonic Bars and Rods remain the preferred option for high-performance and high-stress applications.

Our Products

Other Material

If You Are Looking To Buy High Quality

We supply products that are accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
