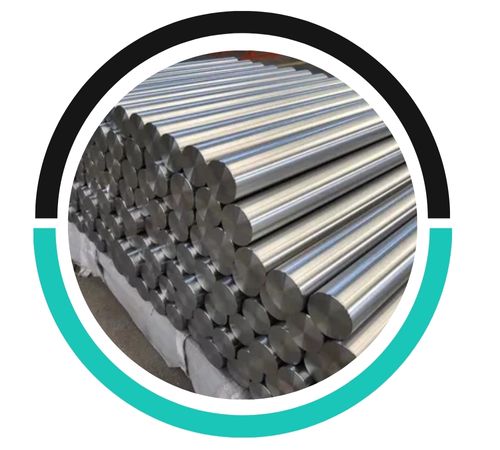

Al Summan Metals, based in Dubai, UAE, has established a strong reputation as a manufacturer and supplier of Nitronic Bars and Rods. These products are recognized for their exceptional corrosion resistance, remarkable strength, and durability against wear. The company specializes in producing high-quality stainless steel alloy bars and rods that comply with international standards, guaranteeing dependable performance in demanding industrial and mechanical environments. Owing to their exact manufacturing methods and stringent quality control, Al Summan Metals delivers Nitronic Bars and Rods that feature excellent dimensional accuracy, a smooth surface finish, and outstanding longevity. This makes them ideal for industries that require resistance to corrosion, galling, and mechanical stress.
The composition of Nitronic Bars and Rods mainly consists of iron, chromium (17–20%), nickel (7–12%), and nitrogen, along with small quantities of manganese and molybdenum that vary according to the particular grade. This mixture markedly enhances corrosion resistance, especially in oxidizing and chloride-rich settings, while simultaneously offering remarkable tensile strength, generally between 620 and 800 MPa, together with good yield strength. Moreover, these materials deliver outstanding wear and galling resistance, combined with solid ductility and toughness, which makes them well suited for demanding engineering and industrial applications.
| Standards : | UNS S21906 | AMS 5656 | MIL-T-9821 | ASTM A276 | ASME SA276 UNS S21800 | Alloy 218 | ASME SA 193 | AMS 5848 | ASTM A 193 EN 1.3964 | ISO 15156-3 | NACE MR0175 | UNS S20910 | AMS 5764 | ASTM A193 | Werkstoff 1.3964 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

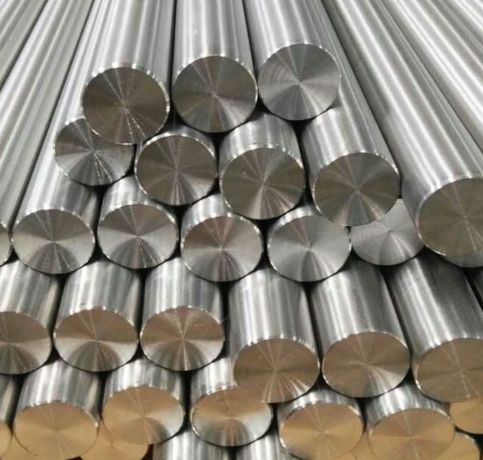

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

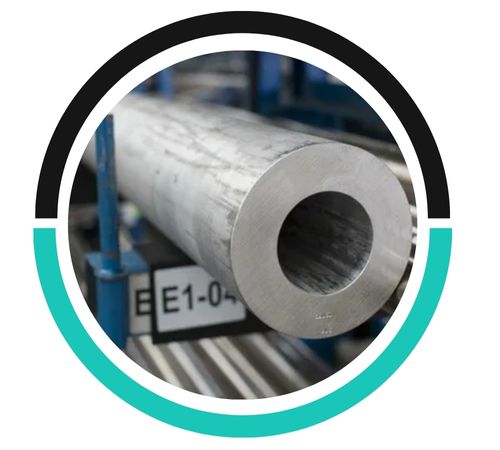

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cr | Ni |
| Nitronic 50 | 0.06 max | 0.10 max | 0.1 max | 23.50 | 14.00 – 17.00 | 13.50 max |
| Nitronic 60 | 0.10 max | 9.00 max | 4.5 max | – | 18.00 | 9.00 max |
| Grade | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness |
| Nitronic 50 | 95 | 50 | 35 % | 241 |
| Nitronic 60 | 105 | 55 | 35 % | – |
| STANDARD | UNS | EN | ISO | NACE | AMS | ASTM | Werkstoff | other |
| Nitronic 40 | S21906 | – | – | – | 5656 | A276 | – | MIL-T-9821 |
| Nitronic 50 | S20910 | 1.3964 | 15156-3 | MR0175 | 5656 | A193 | 1.3964 | MIL-T-9821 |
| Nitronic 60 | S21800 | – | – | – | 5848 | A193 | 1.3964 | Alloy 218 |
Yes, Nitronic bars, such as Nitronic 50 and Nitronic 60, can be joined through conventional welding methods, including TIG, MIG, and shielded metal arc welding (SMAW), when a suitable filler material is used.
Appropriate welding methods for Nitronic bars include TIG (Tungsten Inert Gas), MIG (Metal Inert Gas), and stick welding, using suitable filler materials to guarantee robust, corrosion-resistant joints.
Nitronic rods come in various sizes, generally ranging from 1/8" to 12" in diameter. Typical finishes include hot-rolled, cold-rolled, polished, and machined, based on the intended use.
Nitronic Bars and Rods are used across numerous industries where corrosion resistance, strength, and wear resistance play a vital role. They are especially suitable for producing fasteners, shafts, pump components, valve parts, and machinery components that encounter high stress or abrasive conditions. Within sectors such as chemical processing, marine, and food processing, they serve in equipment that withstands corrosive environments. Thanks to their durability, resistance to galling, and mechanical performance, Nitronic Bars and Rods stand out as a leading option for demanding industrial, engineering, and mechanical applications.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
