Al Summan Metals, a well-regarded manufacturer and supplier based in Dubai, UAE, has established a strong reputation for producing high-quality Stainless Steel 317 Bars and Rods. These bars are carefully engineered to deliver exceptional resistance to corrosion, particularly in settings abundant in acids and chlorides. Thanks to their impressive strength, durability, and superb formability, Al Summan Metals ensures that every product meets international quality standards. Stainless Steel 317 Bars and Rods are in high demand across numerous industries, such as chemical processing, marine applications, and pulp and paper, where dependability and long service life are essential under demanding operational conditions.
The composition of Stainless Steel 317 Bars and Rods consists mainly of iron, together with 18–20% chromium, 11–15% nickel, and 3–4% molybdenum, as well as minor quantities of manganese, silicon, and carbon. This particular mixture greatly enhances their ability to withstand pitting and crevice corrosion. In terms of mechanical properties, they display a tensile strength of roughly 515 MPa, a yield strength of 205 MPa, and remarkable elongation, which guarantees both toughness and workability. These attributes make Stainless Steel 317 Bars and Rods ideal for high-stress and corrosive settings, preserving their performance and structural integrity even in the most demanding conditions.
Standards | ASTM A276, A479, A582, GB4226-84, GB/T1220-2007, JISG4311-91, JIS G4318-98, EN 10095-99, GB4226-84, EN10088-3-2005, JIS G4303-2005, etc |

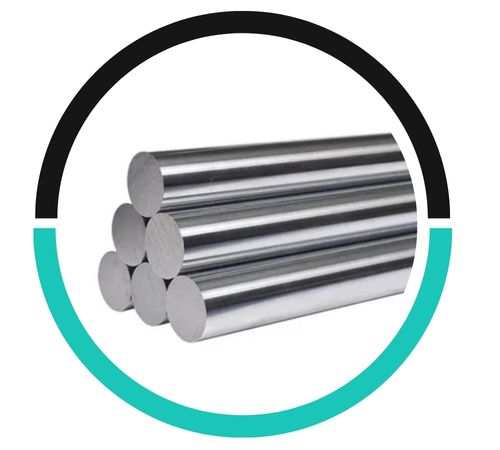

Stainless Steel Round Bar type | ASTM A276 317L stainless steel round bars |
Length | 3000mm, 6000mm or according to the customer’s requirement. |
Technique | Forged/Hot Rolled/Cold Drawn/Peeled |
Surface | bright round bar, pickled round bar, black round bar |
Diameter | 2.0-400mm |
Type | Round bar, rod, square bar, flat bar, hexagon bar, angle bar, channel bar, threaded bar |
round bars Range | Range – 3.17mm to 350mm dia |
Package Details | Standard seaworthy package(wooden boxes package,pvc package, or other package) |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 317L | 0.035 max | 2 max | 1 max | 0.040 max | 0.03 max | 18 – 20 | 3 – 4 | 11 – 15 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1454 °C (2650 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18154 |
Stainless Steel 317 Bars and Rods are well-suited for sectors like chemical processing, marine, pharmaceutical, food processing, and power generation, where withstanding corrosion, particularly from acids and chlorides, is essential.
Stainless Steel 317 has a greater molybdenum content than other grades, boosting its corrosion resistance, especially in harsh settings such as acidic and chloride-heavy conditions.
Stainless Steel 317 Bars and Rods are widely applied across industries handling aggressive chemicals and high temperatures. They are especially suitable for producing heat exchangers, pressure vessels, condensers, and marine components. Because of their outstanding corrosion resistance, they work well in chemical processing plants, petrochemical industries, paper and pulp mills, and food processing facilities. Additionally, they serve in pollution control equipment and coastal structures. The blend of strength, weldability, and corrosion resistance guarantees they provide durable performance in tough applications.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
