Al Summan Metals, based in Dubai, UAE, distinguishes itself as a leading manufacturer and supplier of high-quality Titanium Gr 5 Forgings. Driven by a strong commitment to excellence and innovation, the company specializes in producing precision-engineered titanium components that meet global industry standards. By combining state-of-the-art forging technology with strict quality control and expert craftsmanship, Al Summan Metals provides products that are both long-lasting and reliable. Serving a range of industries, including aerospace, marine, chemical, and medical, Al Summan Metals ensures that every forging delivers exceptional performance, corrosion resistance, and structural integrity to satisfy the rigorous demands of modern engineering.
Titanium Gr 5 Forgings—often called Ti-6Al-4V—consist of roughly 90% titanium, 6% aluminum, and 4% vanadium. This distinctive combination enhances strength, corrosion resistance, and thermal stability. The alloy exhibits a tensile strength of about 950 MPa, a yield strength near 880 MPa, and an elongation of 10–14%, achieving an excellent balance between toughness and ductility. Featuring a density of 4.43 g/cm³ and outstanding fatigue resistance, Titanium Gr 5 maintains its mechanical properties even at elevated temperatures, making it the preferred titanium alloy for high-performance forging applications.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
The strength of Titanium Grade 5 forgings comes from correct heat treatment, a controlled forging process, accurate die design, alloy composition, and keeping an optimal surface finish, boosting strength, corrosion resistance, and fatigue resistance.
Titanium Gr 5 forgings find widespread application across aerospace, automotive, medical, marine, and defense sectors, delivering high strength, corrosion resistance, and lightweight characteristics for critical components and high-performance uses.

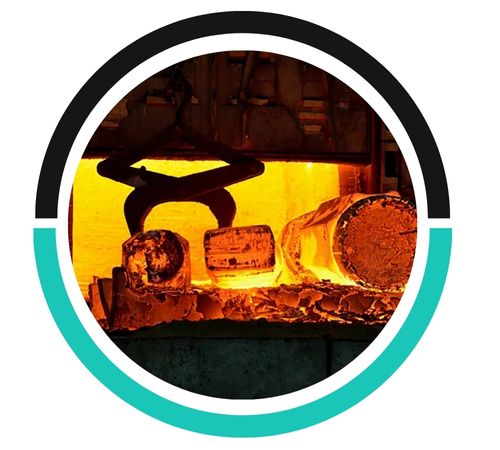

Closed-die forging in the manufacture of Titanium Gr 5 works by forming titanium through compression between two contoured dies, delivering accurate dimensions, superior strength, and enhanced material properties for challenging applications.
Titanium Gr 5 Forgings are widely applied across industries demanding high strength-to-weight ratios along with superior corrosion resistance. Within aerospace, they play a vital role in turbine blades, landing gear, and airframe structural parts. The marine sector relies on them for propeller shafts, valves, and fittings capable of withstanding seawater. In medicine, their biocompatibility makes them ideal for surgical implants and orthopedic devices. Moreover, industries such as chemical processing, automotive, and energy count on these forgings for pressure vessels, heat exchangers, and performance components. Thanks to their adaptability, durability, and thermal stability, Titanium Gr 5 Forgings remain a preferred option for a wide range of applications.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
