Al Summan Metals is recognized as a premier manufacturer and supplier based in Dubai, UAE, focusing on premium-grade Titanium Grade 6 Bars and Rods. Well-known for their precise engineering and dependable performance, the company provides products that meet international quality benchmarks, making them ideal for demanding industrial uses. The Titanium Grade 6 Bars and Rods offered by Al Summan Metals are valued for their remarkable strength, corrosion resistance, and superior weldability. By emphasizing quality, reliability, and timely delivery, Al Summan Metals serves a range of industries, such as aerospace, marine, chemical processing, and medical fields, both within the UAE and across the globe.
These Titanium Grade 6 Bars and Rods consist of approximately 90% titanium, 5% aluminum, and 2.5% tin. This distinctive alloy composition enhances mechanical strength while maintaining good ductility and corrosion resistance. They generally exhibit a tensile strength of about 760 MPa and a yield strength of around 620 MPa, along with an elongation rate of roughly 10–15%. The material additionally provides strong oxidation resistance up to 600°C and delivers outstanding performance in both seawater and mildly reducing environments, making it a durable yet lightweight option for industrial applications.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

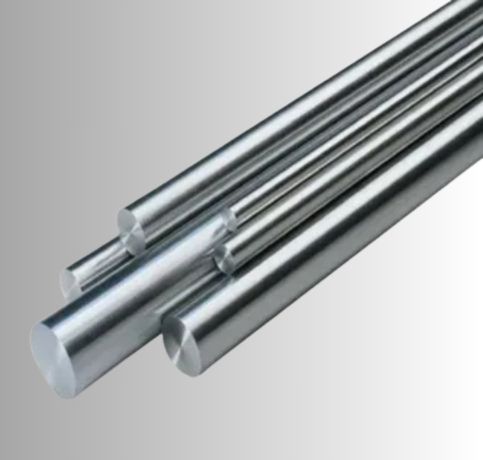

| Round bar size : | Diameter: 3-~800mm |
| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

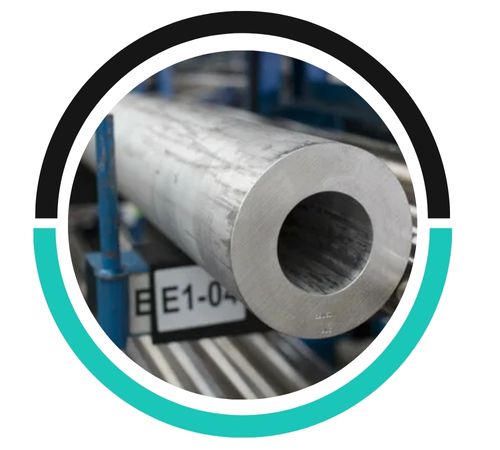

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 6 | 3.7114 | R54520 |
| Grade | C | Fe | N | Ti | H | O | Al | Sn |
| Titanium Gr. 6 | .08 max | 0.50 max | .05 max | Balance | .0175 – .020 | .20 max | 4.0 – 6.0 | 2.0 – 3.0 |
| Element | Min.Tensile(KSI) | Min.Yield(KSI) | Hardness | Tensile Modulus | Poisson’s Ratio |
| Ti Grade 6 | 50 | 40 | 14.9 | 103 GPa | 0.34-0.10 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 6 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we supply bars and rods in both standard and custom sizes and finishes to suit your particular project needs. For further information, email us at sales@alsummanmetals.ae
Titanium Grade 6 Bars and Rods deliver an excellent strength-to-weight ratio, superb corrosion resistance, high-temperature stability, and good formability, which makes them well-suited for high-performance applications.
Titanium Grade 6 Bars and Rods deliver exceptional strength, resistance to corrosion, and weldability, together with outstanding performance in high-temperature and harsh conditions, which makes them well suited for demanding industrial applications.
Titanium Grade 6 Bars and Rods are widely applied in situations demanding exceptional strength, resistance to corrosion, and dependability under harsh conditions. They are used in aircraft parts, gas turbine engines, and chemical processing equipment thanks to their capacity to endure high temperatures. Within the marine industry, they serve in propeller shafts, heat exchangers, and seawater piping systems. Their biocompatibility likewise renders them well-suited for surgical implants and medical devices. In addition, they are put to use in power generation, offshore platforms, and the automotive sector, where enduring durability and performance are essential.
We supply products accompanied by both mill test certificates and third-party test certificates, guaranteeing the highest standards of quality and compliance.
